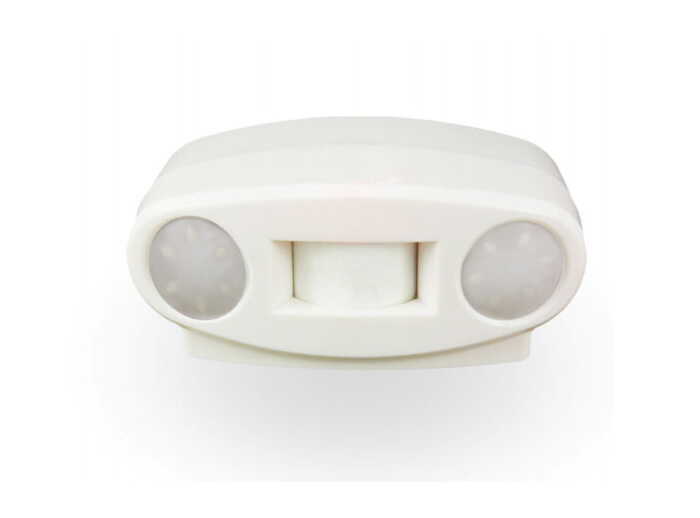

    • Curtain PIR with LED lighting
    • Model：
    • PL-10
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • PL-10
    • HG-15L
    • YD-105

    • Standard Passive Infrared Motion Detector
      Model：SP-012
    • LED Tube Series-0.6m.
      Model：T-810A
    • Street Lighting Sensor
      Model：HB-5808
    • Dual Frequency Infrared Motion Detector
      Model：DF-2010PI
    • Ultra-Sensitive Dual Tech Presence Sensor.
      Model：CDP-1808
    • Micro-movement Occupancy Sensor,
      Model：CP-1806
    • Particular

    • Alarm output for your alarm system with build-in LEDs .to light up passages ,for safety and comfort

      Features:

      ■ Curtain detecting pattern for doors & windows
      ■ Mounting height up to 6 meters
      ■ Adjustable mounting angles
      ■ Adjustable LED light on Time
      ■ Build-in sunset light sensor
      ■ Energy saving lamp control

      Specifications：

      • Specifications / Model
      • PL-10
      • Illumination
      • 2M≥5Lux
      • Ambient light adjustment
      • 10 Lux ~ ∝
      • Delay adjustment
      • 5-300 s
      • Detection angle
      • 11°，6m
      • Input Voltage
      • 10-15V DC
      • 10-15V DC
      • ≤ 65mA（Lights）； 8 mA （Standby）
      • Operating temperature
      • -30℃~+55℃
      • Dimensions
      • 80×47×40mm
      • Weight
      • 60g

      Installation:
