    • Particular
    • Dual Tech Occupancy Sensor, PIR+Ultrasonic

      Product Features:

      ■ Passive Infrared plus Ultrasonic technology to ensure good detection performance.
      ■ Operating Mode Selection: Test / Single Tech / Multi Tech / Walk-through.
      ■ PIR turns the light ON and both technologies keep the light ON / Both technologies turns the light and keeps the light ON (Selectable).
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Adjustable PIR & Ultrasonic sensitivities for different applications / environments.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose.
      ■ Three-Stage White Light Protection.
      ■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling.

      Products specifications:

      • Detection Range
      • 8m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m – 4.0m
      • Operating Power
      • 110/220/277VAC
      • Ultrasonic Frequency
      • 40kHz
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -10℃ to +55℃
      • Approvals
      • CE
      • Dimensions
      • D110mm x 55mm

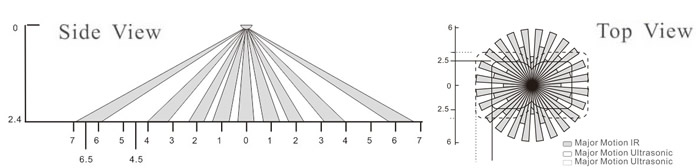

      Optical View Pattern:
