    • Particular

    • Street Lighting Sensor

      Product Features:

      ■ 8-Element IR Detector with unique optical lens design for Hi-Bay application.
      ■ Work with Zigbee or LonWorks? Protocol.
      ■ Wide Range Operating Temperature (-40℃ to +55℃).
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Selectable Detection Sensitivity for different applications / environments.
      ■ Three-Stage White Light Protection.

      Products specifications:

      • Detection Range
      • 8m diameter at 6m mounting height
      • Mounting Height
      • 4.0m -6.0m
      • Operating Power
      • 110/220/277VAC
      • Communication Protocol
      • Zigbee / LonWorks
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Waterproof Housing
      • IP65

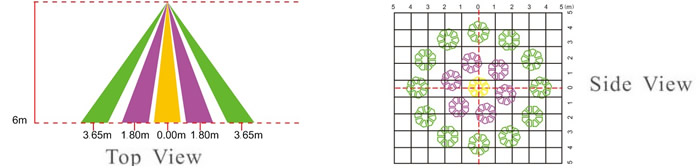

      Optical View Pattern:
