    • Particular

    • Microwave Occupancy Sensor.

      Product Features:

      ■ Microwave technology to ensure high sensitivity.
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Adjustable sensitivity for different applications / environments.
      ■ LED indicator for testing purpose.
      ■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling

      Products specifications:

      • Detection Range
      • 6m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m – 4.0m
      • Operating Power
      • 8-16VDC
      • Microwave Frequency
      • 10GHz
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -10℃ to +55℃
      • Dimensions
      • D93x 38mm

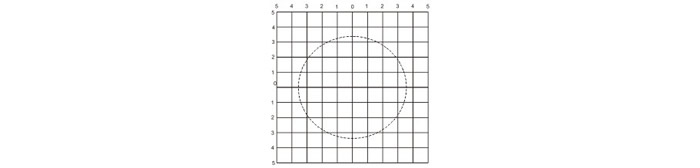

      Optical View Pattern:
