    • Micro-movement Infrared Motion Detector
    • Model:
    • CP-206
    • Applications:
    • Commercial/Residential
    • Print:
    • Brochure

    Series:

    • CP-206HDM
    • CP-206
    • CP-3806
    • CP-1806

    • Ultra-Sensitive Dual Tech Presence Sensor
      Model:CDP-808
    • LED Tube Series-0.6m,
      Model:T-810B
    • Wireless gas Detector
      Model:GD-205W
    • LonWorks™ Enable PIR Occupancy Sensor.
      Model:CL-106FT
    • PIR Occupancy Sensor..
      Model:CL-106
    • Micro-movement Infrared Motion Detector
      Model:CP-206
    • Particular
    • Micro-movement Occupancy Sensor

      Product Features:

      ■ HDIR** 8-Element IR Detector with unique optical lens design for small-motion detection within a 6-meter circle.
      ■ SummerSense Warm-weather DSP: Good summertime detection.
      ■ Wide Range Operating Temperature (-40℃ to +55℃).
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Selectable Detection Sensitivity for different applications / environments.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose.
      ■ Three-Stage White Light Protection.
      ■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling.

      Products specifications:

      • Detection Range
      • 6m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m -4.0m
      • Operating Power
      • 8-16VDC
      • Relay Output
      • Solid-state, 50mA,30VDC
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Dimensions
      • D93mm x 38mm

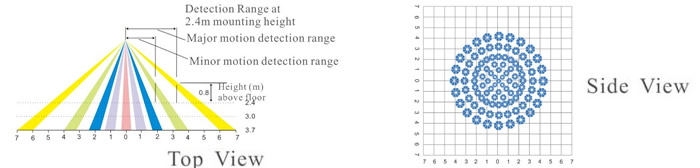

      Optical View Pattern:
