    • Powerpack / Control Unit - Advanced Version
    • Model：
    • PS-212
    • Applications：
    • Commercial/Residential
    • Print：
    • NA

    Series：

    • PS-224
    • PS-124
    • PS-212
    • PS-112

    • Ceiling Mount
      Model：CS-106
    • Dual Technology Motion Detector X-TEC™-(European Version)
      Model：CX-806E
    • H.264 HD-SDI 4 Channel High Definition DVR
      Model：AR-804HD
    • Zoom Dome Camera Series
      Model：FB-N
    • Micro-movement Occupancy Sensor,
      Model：CP-1806
    • Glass break detector.
      Model：GB-306W
    • Particular

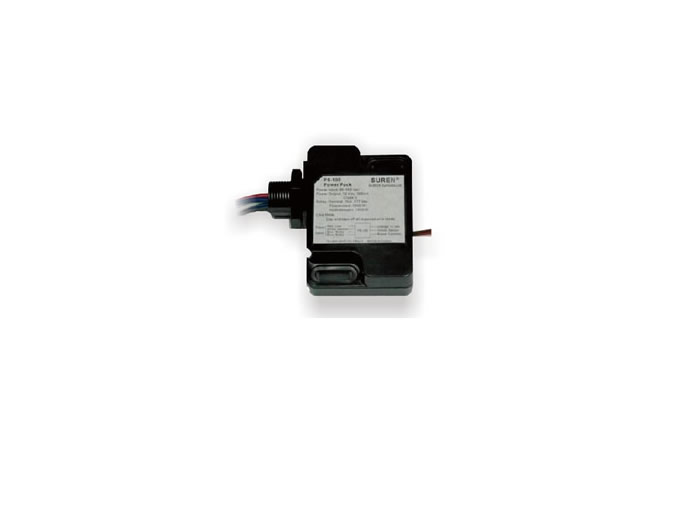

    • Powerpack / Control Unit

      Applicable Model:
      CL-106, CP-206, HB-208, HB-216, MV-106, CDP-808,CDL-608

      Features:

      ■ Provide DC power to low voltage sensors.
      ■ Multiple Sensors / Single Sensor can control one or multiple powerpacks.
      ■ Manual ON, Auto OFF / Auto ON, Manual OFF Operations.

      Products specifications:

      • Power Input
      • 110/220/277VAC
      • Max. Loading
      • 1000W (Incandescent); 1000W (Fluorescent)
      • Max. Loading Current
      • 16A
      • DC Output
      • 12VDC
      • Operating Temperature
      • -10℃ - +55℃
      • Dimensions
      • 79mm x 76mm x 38.5mm

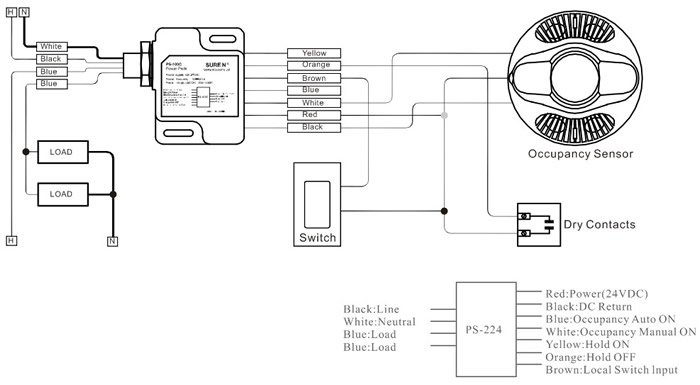

      Wiring diagram:
