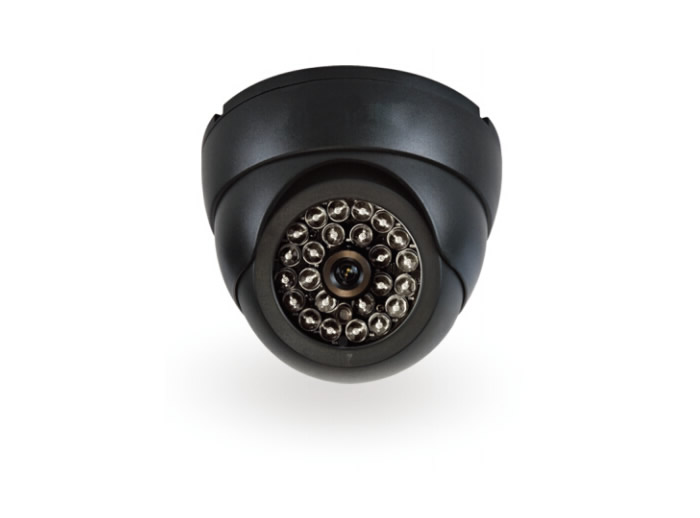

    • Particular

    • For Residential & commercial applications.

      Features:
      ■ High-performance CCD
      ■ High resolution,image clarity,detail
      ■ Illumination as low as 0.01Lux
      ■ Support for automatic color to black function
      ■ Aluminum casing
      ■ with infrared night vision, night vision distance of 30 meters

      Specifications

      • Model
      • AR-2613FC-N30
      • AR-2513FC-N30
      • AR-2424FC-N30
      • Camera
      •
      • Sensor type
      • 1/3 SONY CCD
      • 1/3 SONY CCD
      • 1/4 SHARP CCD
      • Light Sensitivity
      • 0.01Lux
      • Lens
      • 4-9mm,F1.6m
      • Shutter Time
      • PAL:1/50-1/100,000 NTSC:1/60-1/100,000
      • Video
      •
      • Video Format
      • NTSC
      • Resolutions
      • 600TVL
      • 500TVL
      • 420TVL
      • Resolutions
      • PAL:792*698;NTSC:768*694(H*V)
      • PAL:752*582;NTSC:768*494(H*V)
      • PAL:500*582;NTSC:512*492(H*V)
      • Video Output
      • 1Vp-p,75Ω
      • SNR
      • 〉50dB
      • 〉50dB(AGC OFF)
      • ≥48dB(AGC OFF)
      • Dynamic Width
      • 80DB
      • 60DB
      • 60DB
      • Synchronization system
      • Internal
      • Menu Functions
      • yes
      • IR
      •
      • Shine Distance
      • 30m
      • General
      •
      • Power
      • DC12V/80mA and IR≤450mA
      • DC12V/80mA and IR≤450mA
      • DC12V/60mA and IR≤450mA
      • Operating Temperature
      • -10℃~+50℃ RH95% Max
      • Dimensions
      • Φ127mm
      • Included accessories
      • User’s Manual
