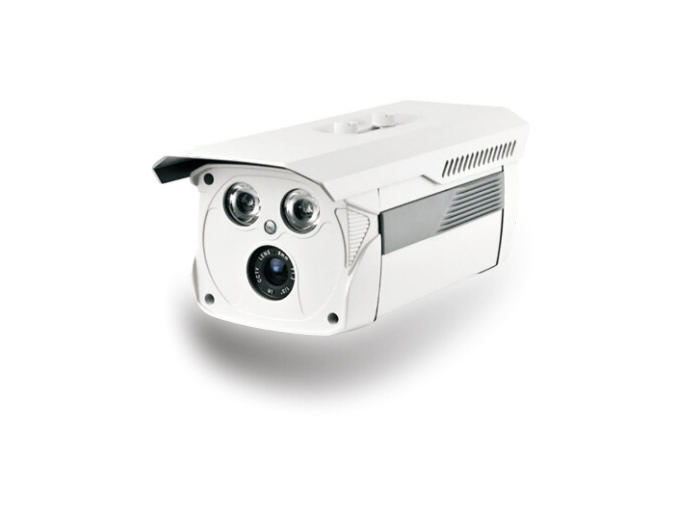

HD-SDI High Definition Camera
Suitable for residential, commercial & industrial applications
Features:
■ High Definition Progressive Scan Image Sensor
■ 2.2 Mega Pixels Sensor
■ 1080P(1920 x 1080 / 50 fps) Full Time Recording
■ Day & Night Operation
■ IR Illumination up to 50m
■ Auto White Balance / Auto Gain Control
■ IP65 Waterproof
Products specifications:
- Moder
- M3024-50HD
- M3025-50HD
-
- Imaging Chip
- 1/3”CMOS
- 1/3”CMOS
-
- Scan Model
- Progressive Scan
- Progressive Scan
-
- Lens Interface
- CS/C Mount
- CS/C Mount
-
- Number of Pixels
- 1280(H) × 724(V),1.3 Mega Pixels
- 2010(H)x1108(V),1.3 Mega Pixels
-
- Highest Resolution
- 720P, 60fps
- Full HD/1080P, 60fps
-
- Shutter Speed
- 1/30 – 1/50,000 sec (NTSC) / 1/25 – 1/50,000sec (PAL)
- 1/30 – 1/50,000 sec (NTSC) / 1/25 – 1/50,000sec (PAL)
-
- Minimum Illumination
- 0 lux(when IR LED on)
- 0 lux(when IR LED on)
-
- Digital Noise Reduction
- YES
- Backlight Compensation
- YES
- Operating Power
- DC12V,120mA
- Waterproof Standard
- IP 65
- Operating Temperature
- -20℃~+50℃
- Dimension
- 260 x 111 x 196 (L x W x H)
