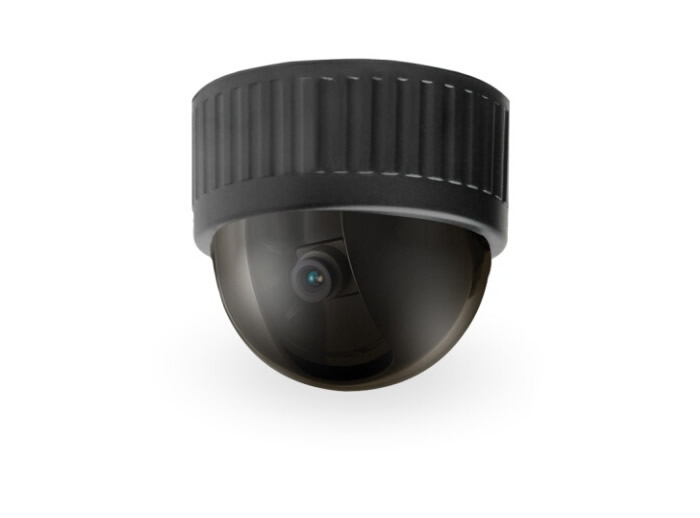

For residential & commercial applications
Features:
■ High-performance CCD.
■ High resolution,image clarity,detail.
■ Illumination as low as 0.01Lux.
■ Support for automatic color to black function.
Products specifications:
- Model
- AR-2613FB-N
- AR-2513FB-N
- AR-2424FB-N
- Sensor type
- 1/3 SONY CCD
- 1/3 SONY CCD
- 1/4 SHARP CCD
- Light Sensitivity
- 0.01Lux
- Shutter Time
- PAL:1/50-1/100,000 NTSC:1/60-1/100,000
- Resolutions
- 600TVL
- 540TVL
- 420TVL
- Resolutions
- PAL:792*698;NTSC:768*694(H*V)
- PAL:752*582;NTSC:768*494(H*V)
- PAL:500*582;NTSC:512*492(H*V)
- SNR
- 〉50dB
- 〉50dB(AGC OFF)
- ≥48dB(AGC OFF)
- Dynamic Width
- 80DB
- 60DB
- 60DB
- Synchronization system
- Internal
- Power
- DC12V/80mA
- DC12V/80mA
- DC12V/60mA
- Operating Temperature
- -10℃- +50℃ RH95% Max
- Included accessories
- User’s Manual
