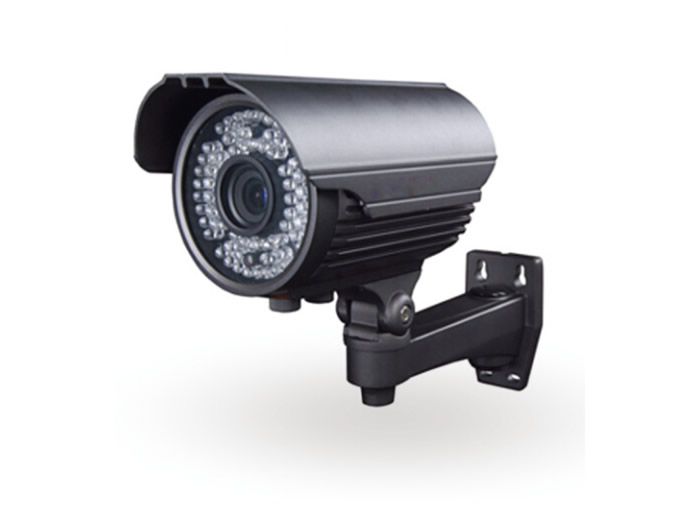

    • Line Infrared Camera grab
    • Model：
    • FE-N40
    • Applications：
    • Commercial/Residential
    • Print：
    • NA

    Series：

    • FF-N50
    • AD-N20
    • FE-N40

    • Standard Passive Infrared Motion Detector.
      Model：SP-112
    • Multi Technology Motion Detector(Curtain )
      Model：M-5815C
    • LED Tube Series
      Model：T-819
    • Dual Technology Motion Detector- X-TEC™
      Model：SX-810
    • Wireless Smoke Detector with low-battery alert
      Model：SD-305W
    • Dual Frequency Infrared Motion Detector(Curtain.)
      Model：DF-5015C
    • Particular

    • For Residential & commercial applications.

      Features:
      ■ high-performance SONY CCD
      ■ high resolution, image clarity, detail
      ■ illumination, 0.1Lux
      ■ Support for automatic color to black function
      ■ aluminum metal
      ■ IP65 waterproof
      ■ with infrared night vision, night vision distance of 40 meters

      Specifications

      • Model
      • AR-1613FE-N40
      • AR-1513FE-N40
      •
      • Camera
      •
      • Sensor type
      • 1/3 SONY CCD
      • 1/3 SONY CCD
      •
      • Light Sensitivity
      • 0.01Lux
      • Lens
      • 4-9mm,F1.6m
      • Shutter Time
      • PAL:1/50-1/100,000 NTSC:1/60-1/100,000
      • Video
      •
      • Video Format
      • NTSC
      • Resolutions
      • 600TVL
      • 500TVL
      •
      • Resolutions
      • PAL:792*698;NTSC:768*694(H*V)
      • PAL:752*582;NTSC:768*494(H*V)
      •
      • Video Output
      • 1Vp-p,75Ω
      • SNR
      • 〉50dB
      • 〉50dB
      •
      • Dynamic Width
      • 80DB
      • 60DB
      •
      • Synchronization system
      • Internal
      • Menu Functions
      • yes
      • IR
      •
      • Shine Distance
      • 40m
      • General
      •
      • Power
      • DC12V/80mA and IR≤500mA
      • DC12V/80mA and IR≤450mA
      •
      • Operating Temperature
      • -10℃~+50℃ RH95% Max
      • IP rating
      • IP65
      • Dimensions
      • Φ75mm
      • Included accessories
      • User’s Manual,Frame
