    • Professional Passive Infrared Motion Detector
    • Model:
    • SP-215
    • Applications:
    • Commercial/Residential
    • Print:
    • Brochure

    Series:

    • SP-215
    • SP-212PI
    • SP-215C
    • SP-215FT

    • Indoor/Outdoor PIR motion spotlight
      Model:HG-15L
    • Panic Button
      Model:PB-100W
    • IP Camera
      Model:M-3013
    • LonWorks™ Enable PIR Occupancy Sensor.
      Model:CL-106FT
    • Wireless Smoke Detector with low-battery alert
      Model:SD-305W
    • Dual Frequency Infrared Motion Detector..
      Model:DF-2010C
    • Particular
    • Wide Angle Professional Passive Infrared Motion Detector ,Pyroflex

      Product Features:

      ■ PYROFLEX IR Detector: Less amplification & less gain for false alarms.
      ■ SureSpot ASIC microcontroller waveform processing.
      ■ SummerSense Warm-weather DSP: Good summertime detection.
      ■ Wide Range Operating Temperature (-40℃ to +55℃)
      ■ Sensitive tamper switch
      ■ World-class immunity to shock, white light, temperature, RF, electrical surges
      ■ Look-down detection directly below the sensor, to catch wall-creeping intruders.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ Three Stage White Light Protection.

      Products specifications:

      • Detection Range
      • 15m
      • Operating Power
      • 8 – 16VDC
      • Operating Current
      • 15 mA at 12VDC
      • Alarm Relay
      • Solid state Form A (NC): 50mA@30VDC
      • RF Immunity
      • 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
      • Sensitivity
      • 2-event or 3-event(selectable)
      • Operating Temperature
      • -40 °C to +55 °C
      • Dimensions
      • 94 x 50 x 42 mm ( H x W x D )

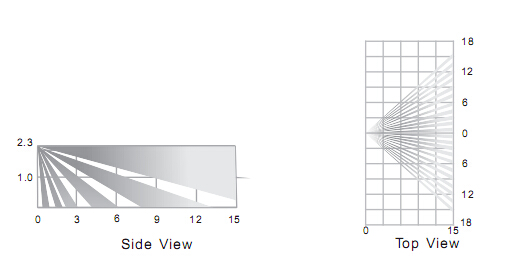

      Optical View Pattern:
