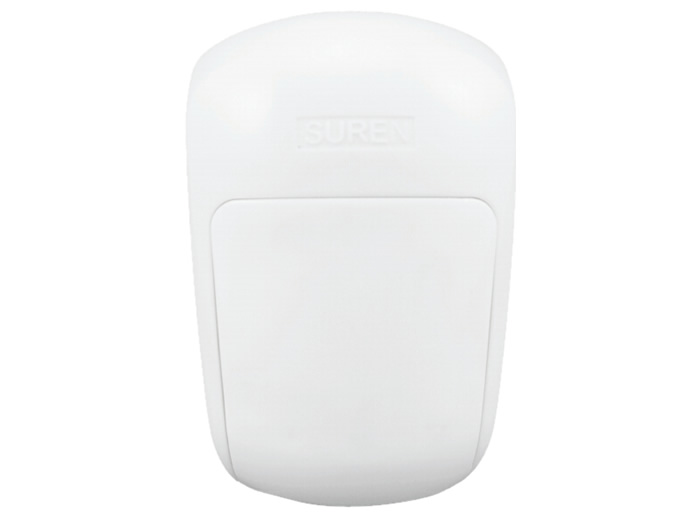

Self-test, Wide Angle Professional Passive Infrared Motion Detector,Pyroflex
Product Features:
■ PYROFLEX IR Detector: Less amplification & less gain for false alarms.
■ SureSpot ASIC microcontroller waveform processing.
■ SummerSense Warm-weather DSP: Good summertime detection.
■ Periodic self-test by IR source
■ Wide Range Operating Temperature (-40℃ to +55℃).
■ Sensitive tamper switch.
■ World-class immunity to shock, white light, temperature, RF, electrical surges.
■ Look-down detection directly below the sensor, to catch wall-creeping intruders.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ Three Stage White Light Protection.
Products specifications:
- Operating Power
- 8 – 16VDC
- Operating Current
- 15mA at 12VDC
- Alarm Relay
- Solid state Form A (NC): 50mA@30Vdc
- Tamper Switch
- Form A (NC) 50 mA @ 30V DC
- RF Immunity
- 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
- Sensitivity
- 2-event or 3-event(selectable)
- Operating Temperature
- -40 °C to +55 °C
- Dimensions
- 94 x 50 x 42 mm ( H x W x D )

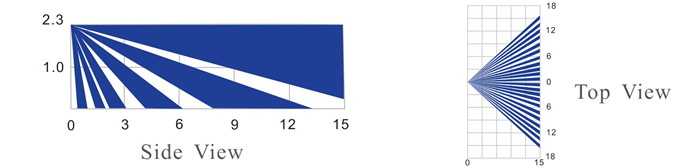

Optical View Pattern:
