Particular
Micro-movement Infrared Motion Detector-HDIR

Product Features:

■ HDIR 8-element IR Detector with micro-movement detection for high security application.
■ SummerSense? Warm-weather DSP: Good summertime detection.
■ World-class immunity to shock, white light, temperature, RF, electrical surges.
■ Wide Range Operating Temperature (-40℃ to +55℃).
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ Three Stage White Light Protection.
■ Spring Clips mounting for drop ceiling.

Products specifications:

Detection Range

6m at 2.4m mounting height

Operating Voltage

8-16VDC

Operating Current

20mA at 12VDC

Alarm Relay

Solid-state Form A,50mA,30VDC

Mounting Height

2.3m – 4.0m

RF Immunity

20V/m,10-1000MHZ;10V/m,1000-2000MHZ

Sensitivity

1-event or 2-event (selectable)

Operating Temperature

-40 °C to +55 °C

Dimensions

D93 x 38 mm

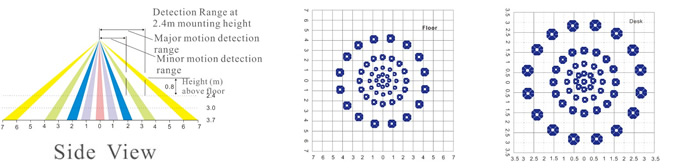

Optical View Pattern:
