Particular

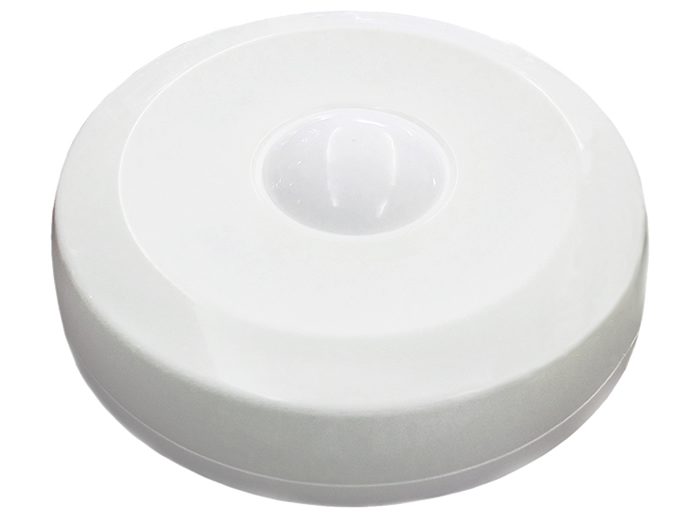

Dual Technology Motion Detector,X-TEC

Product Features:

■ PYROFLEX IR Detector plus Microwave Doppler Technology (X-TEC)
■ SureSpot ASIC microcontroller waveform processing.
■ SummerSense Warm-weather DSP: Good summertime detection.
■ Sensitive tamper switch.
■ World-class immunity to shock, white light, temperature, RF, electrical surges.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ Three Stage White Light Protection.
■ Automatic switch to single-technology operation if one technology fails.
■ Adjustable sensitivity for different requirements

Products specifications:

Detection Range

6m diameter at 2.4 mounting height

Microwave Frequency

9-11 GHz

Operating Voltage

8-16VDC

Operating Current

18mA at 12VDC

Alarm Relay

Solid-state Form A, 50mA,60VDC

Tamper Switch

Form A (NC): 50mA@30VDC

RF Immunity

20V/m,10-1000MHZ;10V/m,1000-2000MHZ

Sensitivity

2-event or 3-event(selectable)

Operating Temperature

-30 °C to +55 °C

Dimensions

D128 x 40 mm

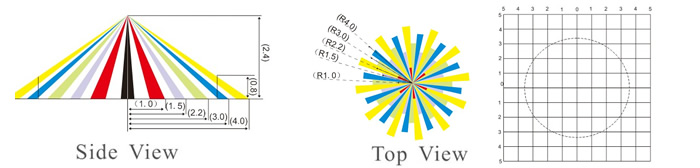

Optical View Pattern:
