Product Features:
■ Flexible connection, it can be run in three modes, single-sensor control a single load, multiple sensors to control a single load, single-sensor control multiple loads.
■ Wide voltage application accepts 85-265VAC input voltage.
■ Easy installation, wiring simple.
■ Rugged 16A relay for load control.
Products specifications:
- Maximum Load
- 16A general,1000W Fluorescent,1000W Incandescent
- Sensor Voltage
- 12V DC +/- 8%
- Sensor Current,maximum
- 250mA
- Line-Power Conductors
- Line, Neutral, Load
- Housing Material
- Flame-retardant ABS
- Relative Humidity Range
- 0 – 95% non-condensing
- Temperature Range
- - 40°Cto+ 55°C
- Dimensions
- 79mm x 76mm x 38.5mm

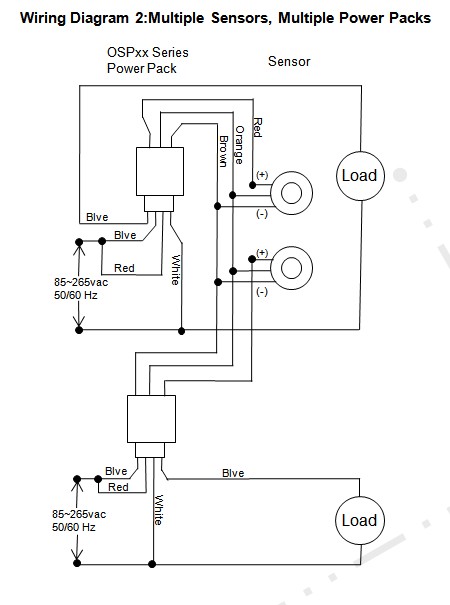

Wiring diagram:
