Constant Curtain Dual Frequency Infrared Motion Detector, DFIR
Product Features:
■ IP65 Waterproof Housing.
■ Dual Frequency Infrared (DFIR) opto-electronic system.
■ SureSpot ASIC microcontroller waveform processing.
■ SureTrac Constant-Width Curtain Detection Pattern.
■ World-class immunity to shock, white light, temperature, RF, electrical surges.
■ Wide Range Operating Temperature (-40℃ to +55℃).
■ Adjustable sensitivity for different requirements.
■ Look-down detection directly below the sensor, to catch wall-creeping intruders.
■ Three Stage White Light Protection.
Products specifications:
- Operating Voltage
- 8-16VDC
- Operating Current
- 15mA at 12VDC
- Alarm Relay
- Solid-state Form A, 50mA,30VDC
- Tamper Switch
- Form A (NC): 50mA@30VDC
- RF Immunity
- 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
- Sensitivity
- 2-event or 3-event(selectable)
- Operating Temperature
- -40 °C to +55 °C
- Dimensions
- 167 x 76x42 mm

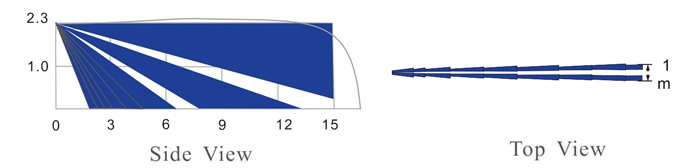

Optical View Pattern:
