    • Particular

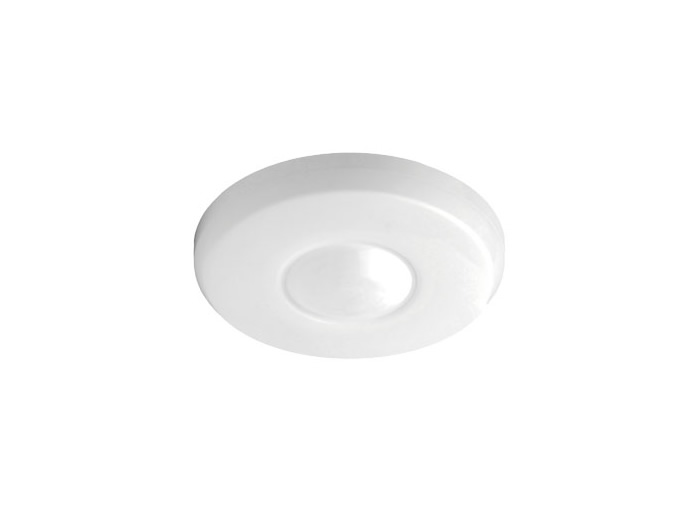

    • Low current wireless passive infrared motion detector

      Features:

      ■ Wireless transmission distance of 100 meters ( open )
      ■ High-efficiency Spherical Lens
      ■ 122-field-of-view Lens/Detector System
      ■ Tamper switch
      ■ HighBar intruder detection works to provide consistent detection sensitivity throughout the monitored area, over the full range of intruder motion speeds.

      Specifications:

      • Specifications / Model
      • CS-106AW
      • Transmitting Frequency
      • 433.92MHz± 75KHz
      • Transmission Distance
      • 100 m （ Open ）
      • Detection range
      • 6 m
      • Alarm Output
      • Wireless Alarm
      • Optical fields - of -iew
      • Long:48,Mid:48,Short:16,Look-down:10
      • Tamper Switch
      • yes
      • IP rating
      • IP30
      • Input Voltage
      • 3V
      • Current
      • ≤ 28 uA ( Standby ）,≤ 15 mA（ Alarm ）
      • Battery Life
      • 2 year （ AAA x 2 ，Alkaline batteries ）
      • Operating temperature
      • -20℃ ～ +55℃
      • Dimensions
      • R:93 mm ，H:38 mm
      • Weight
      • 60 g ( Without batteries )
