    • Particular

    • Protects enclosed display cabinet/showcase.in museum jewellery shops etc.

      Product Features:

      ■ Adjustable sensitivity.
      ■ Monitor disconnection and masking of receiver and transmitter.
      ■ LED to indicate operation modes of the sensor and disturbances to the monitored volume.
      ■ Immunity to acoustic noise from 20 Hz to 20 kHz.

      Products specifications:

      • Min/max Monitored Volume
      • 0.03 ～ 1Cubic metre
      • Alarm Output
      • Form-A-NC-relay
      • IP Rating
      • IP 30
      • Input Voltage
      • 10V～15V
      • Current
      • ≤ 50 mA
      • Tamper Switch
      • yes
      • Operating Temperature
      • + 5℃ ～ + 40℃
      • Dimensions
      • 137x70x38 mm ( Signal processor )
      • Dimensions
      • 40x30x20mm(Transmitter/receiver)
      • Weight
      • 159 g

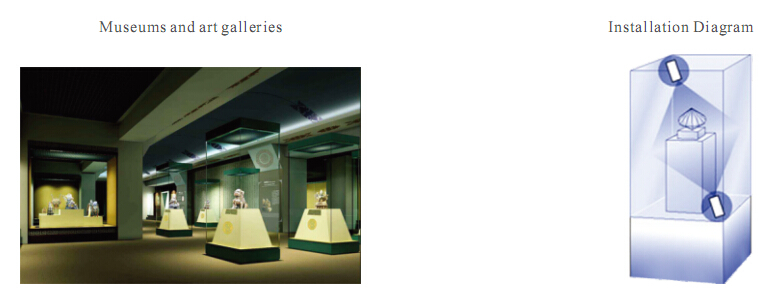

      Installation
