    • Particular

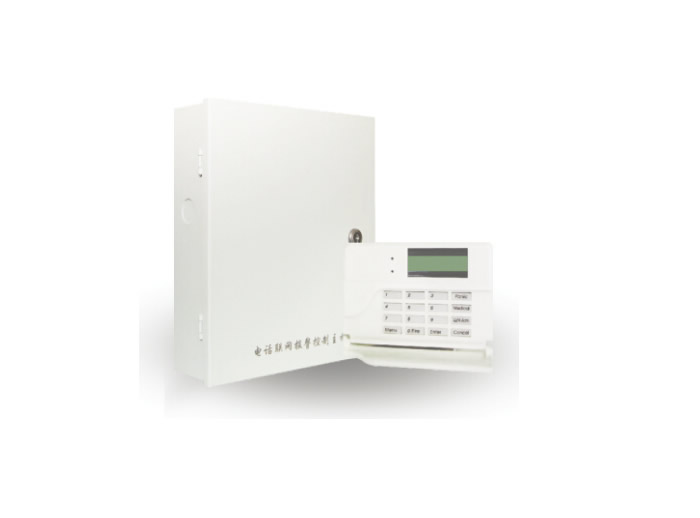

    • The CP-108 provides eight monitored zones, siren and strobe outputs, auxiliary and switched power terminals for peripherals.
      All programming is done via an alphanumeric LCD keypad. Programming options are menu-structured. Daily user options are.
      clearly laid-out and easy to operate.

      Product Features:

      ■ User Friendly.
      ■ Simple LCD Menu ControL.
      ■ Easy Quick Arm and Home Arm.
      ■ Handy Wireless Remote Arm/disarm.
      ■ 3 Emergency Keys.
      ■ 16 4-digit User Codes.
      ■ Test Modes.
      ■ Reliable Reporting.
      ■ Dual, Split, or Back-up Reporting.
      ■ End of line monitoring.
      ■ Telephone line cut monitoring.
      ■ Built-in on-board modem.
      ■ ADEMCO CID and SMS message formats.
      ■ Alarm memory.
      ■ Complete System.
      ■ 8 zones each fully programmable wired or wireless.
      ■ 3 emergency keys reporting to separate “Soft Zones”.
      ■ Siren, strobe and auxiliary outputs .

      Products specifications:

      • Zone
      • 8
      • Connect Keypad
      • ≤ 4
      • Protocol
      • CID
      • Output
      • Bell, 1 PGM
      • Event Log
      • 300
      • Anti Temper/Cut
      • YES
      • Input Voltage
      • 16.5V ac
      • Power Consumption
      • 25VA
      • Operating Temperature
      • -10℃ ～ +55℃
      • Dimensions
      • 255 x 230 x 67 mm( H x W x D )

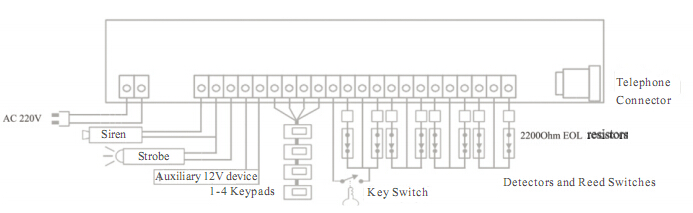

      Simple Wiring Installation
