    • LonWorks™ Enable PIR Occupancy Sensor.
    • Model：
    • CL-106FT
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • CL-106PL
    • CL-106
    • CL-106FT

    • Powerpack / Control Unit.
      Model：PS-124
    • LED Tube Series-0.6m
      Model：T-810
    • Professional Passive Infrared Motion Detector(Pet )
      Model：SP-212PI
    • Professional Passive Infrared Motion Detector
      Model：SP-215
    • Anti-masking Dual Technology Motion
      Model：SX-915AM
    • Alarm Control Panel
      Model：CP-108
    • Particular

    • Twisted pair Transmission LonWorks Enable PIR Occupancy Sensor

      Product Features:

      ■ PYROFLEX IR Detector: Less amplification & less gain for false alarms.
      ■ SummerSense Warm-weather DSP: Good summertime detection.
      ■ LonWorks Enabled (Power Line)
      ■ Wide Range Operating Temperature (-40℃to +55℃)
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Selectable Detection Sensitivity for different applications / environments.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose.
      ■ Three-Stage White Light Protection.
      ■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling.

      Products specifications:

      • Detection Range
      • 6m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m – 4.0m
      • Operating Power
      • 8-16VDC (Network Power Adaptor included)
      • Communication Protocol
      • LonWorks?, Power Line Transmission
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Dimensions
      • D93x 38mm

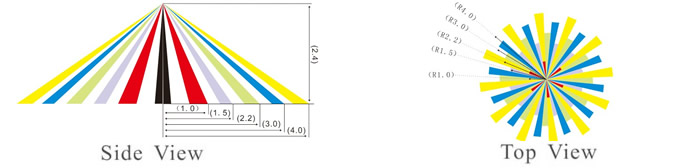

      Optical View Pattern:
