    • Wide Angle Standard Passive Infrared Motion Detector

      Product Features:

      ■ HighBar waveform processing rejects noise and provides reliable detection.
      ■ Sensitive tamper switch
      ■ World-class immunity to shock, white light, temperature, RF, electrical surges.
      ■ Look-down detection directly below the sensor, to catch wall-creeping intruders.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ Three Stage White Light Protection.

      Products specifications:

      • Detection Range
      • 12m
      • Operating Power
      • 8 – 16VDC
      • Operating Current
      • 18 mA at 12VDC
      • Alarm Relay
      • Reed type; 50 mA, 30VDC
      • Tamper Switch
      • Form A (NC) 50 mA @ 30VDC
      • RF Immunity
      • 20V/m10-1000MHZ;10V/m1000-2000MHZ
      • Sensitivity
      • 2-event or 3-event(selectable)
      • Operating Temperature
      • -20 °C to +55 °C
      • Dimensions
      • 94 x 50 x 42 mm ( H x W x D )

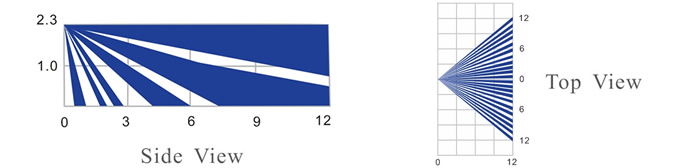

      Optical View Pattern:
