    • Particular

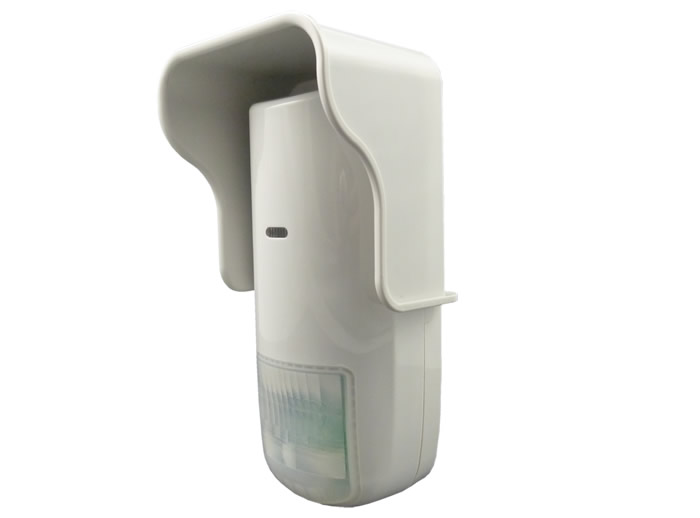

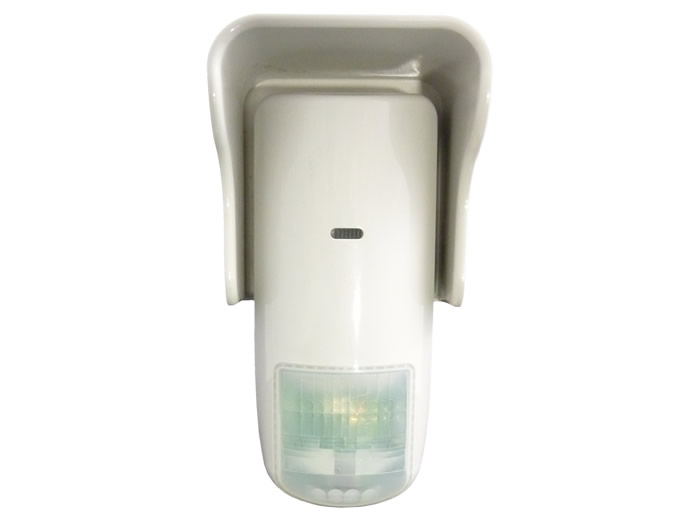

    • Wide Angle Multi Technology Motion Detector,M-TEC

      Product Features:

      ■ IP65 Waterproof Housing.
      ■ Dual Frequency Infrared (DFIR) plus Microwave Doppler Technology (M-TEC)
      ■ SureSpot ASIC microcontroller waveform processing.
      ■ World-class immunity to shock, white light, temperature, RF, electrical surges
      ■ Wide Range Operating Temperature (-40℃ to +55℃)
      ■ Adjustable sensitivity for different requirements
      ■ Look-down detection directly below the sensor, to catch wall-creeping intruders
      ■ Three Stage White Light Protection

      Products specifications:

      • Detection Range
      • 15m
      • Operating Voltage
      • 8-16VDC
      • Operating Current
      • 14mA at 12VDC
      • Alarm Relay
      • Solid-state Form A, 50mA,30VDC
      • Tamper Switch
      • Form A (NC): 50mA@30VDC
      • RF Immunity
      • 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
      • Sensitivity
      • 2-event or 3-event(selectable)
      • Operating Temperature
      • -30 °C to +55 °C
      • Dimensions
      • 167 x 76 x 42 mm

      Optical View Pattern:
