Particular
Dual Tech Occupancy Sensor, PIR+Ultrasonic

Product Features:

■ Passive Infrared plus Ultrasonic technology to ensure good detection performance.
■ Operating Mode Selection: Test / Single Tech / Multi Tech / Walk-through.
■ PIR turns the light ON and both technologies keep the light ON / Both technologies turns the light and keeps the light ON (Selectable).
■ Adjustable 5s – 30min for relay “ON” time.
■ Adjustable sunset sensor to enable lighting only when ambient light is low.
■ Adjustable PIR & Ultrasonic sensitivities for different applications / environments.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ LED indicator for testing purpose.
■ Three-Stage White Light Protection.
■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling.

Products specifications:

Detection Range

8m diameter at 2.4m mounting height

Mounting Height

2.3m – 4.0m

Operating Power

12VDC or 24VDC

Ultrasonic Frequency

40kHz

RF Immunity

20V/m,10-1000MHz; 10V/m,1000-2000MHz

Adjustable sunset sensor

100 lux – 3000 lux

Operating Temperature

-10℃ to +55℃

Approvals

CE

Dimensions

D110mm x 55mm

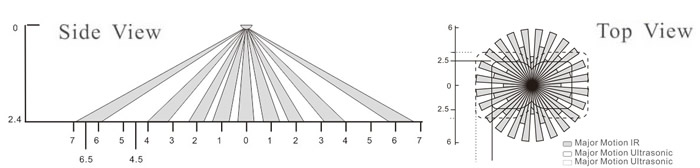

Optical View Pattern:
