    • Super Wide range Occupancy sensor

      Product Features:

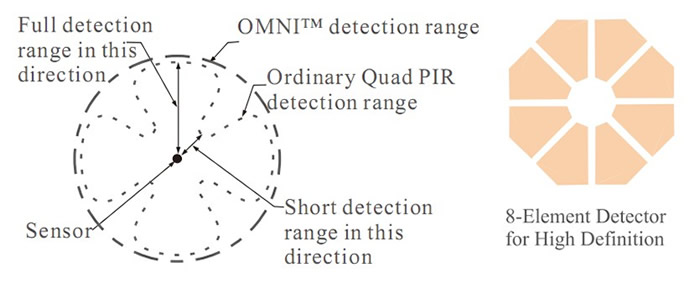

      ■ OMNI** 8-Element IR Detector for reliable detection within a 16-meter circle
      ■ SummerSense? Warm-weather DSP: Good summertime detection
      ■ Bus (HDL Compatible)
      ■ Wide Range Operating Temperature (-40℃ to +55℃)
      ■ Adjustable 5s – 30m for relay “ON” time
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low
      ■ Selectable Detection Sensitivity for different applications / environments
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose
      ■ Three-Stage White Light Protection
      ■ Spring Clips Mount for drop ceiling

      Specifications:

      • Detection Range
      • 16m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m – 4.0m
      • Communication Protocol
      • Bus (HDL Compatible)
      • Operating Power
      • 110/220/277Vac
      • Max. Loading
      • 2000W
      • Max. Load Current
      • 16A
      • RF Immunity
      • 20V/m 10-1000MHz; 10V/m 1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Approvals
      • CE, CCC
      • Dimensions
      • D73mm x 128mm

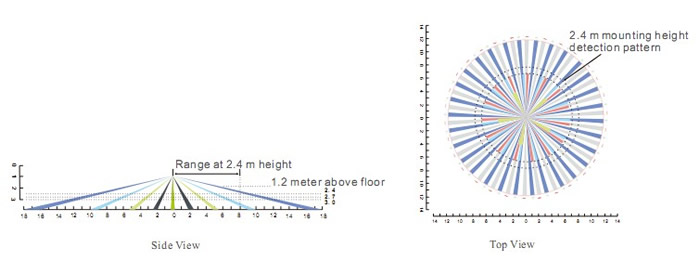

      Optical View Pattern:
