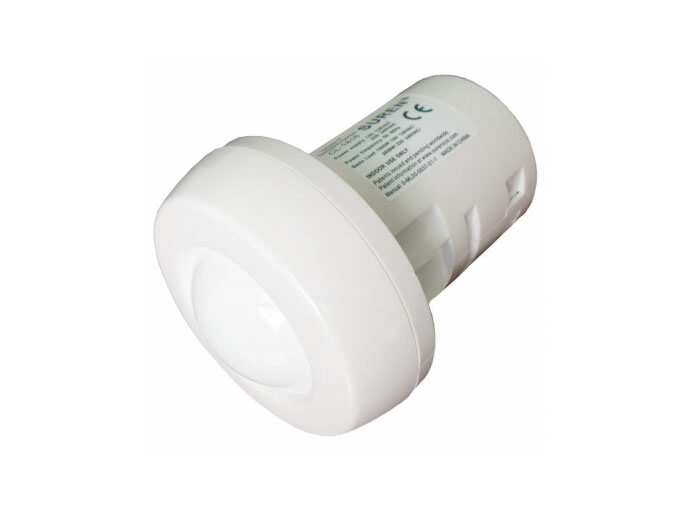

    • Micro-movement Occupancy Sensor, HDIR

      Product Features:

      ■ HDIR** 8-Element IR Detector with unique optical lens design for small-motion detection within a 6-meter circle.
      ■ SummerSense Warm-weather DSP: Good summertime detection.
      ■ Wide Range Operating Temperature (-40℃ to +55℃).
      ■ Adjustable 5s – 30min for relay “ON” time.
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low.
      ■ Selectable Detection Sensitivity for different applications / environments.
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose.
      ■ Three-Stage White Light Protection.
      ■ Spring Clips Mount for drop ceiling.

      Products specifications:

      • Detection Range
      • 6m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m -4.0m
      • Operating Power
      • 110/220/277VAC
      • Max. Loading
      • 2000W
      • Max. Load Current
      • 16A
      • RF Immunity
      • 20V/m,10-1000MHz; 10V/m,1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Dimensions
      • D73mm x 128mm

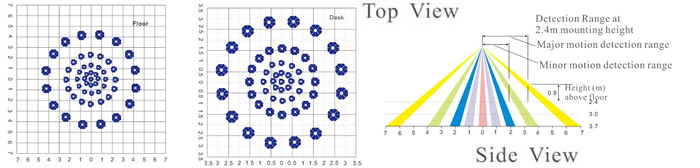

      Optical View Pattern:
