    • Particular

    • Multi Technology Motion Detector, M-TEC

      Product Features:

      ■ Dual Frequency Infrared (DFIR?) plus Microwave Doppler Technology (M-TEC).
      ■ SureSpot ASIC microcontroller waveform processing.
      ■ World-class immunity to shock, white light, temperature, RF, electrical surges.
      ■ Wide Range Operating Temperature (-30℃ to +55℃).
      ■ Adjustable sensitivity for different requirements.
      ■ Look-down detection directly below the sensor, to catch wall-creeping intruders.
      ■ Three Stage White Light Protection.

      Products specifications:

      • Detection Range
      • 15m
      • Microwave Frequency
      • 9-11 GHz
      • Operating Voltage
      • 8-16VDC
      • Operating Current
      • 15mA at 12VDC
      • Alarm Relay
      • Solid-state Form A, 50m,30VDC
      • Tamper Switch
      • Form A (NC): 50mA@30VDC
      • RF Immunity
      • 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
      • Operating Temperature
      • -30 °C to +55 °C
      • Dimensions
      • 112 x 50x42 mm

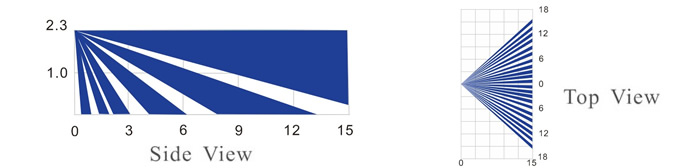

      Optical View Pattern:
