    • Particular

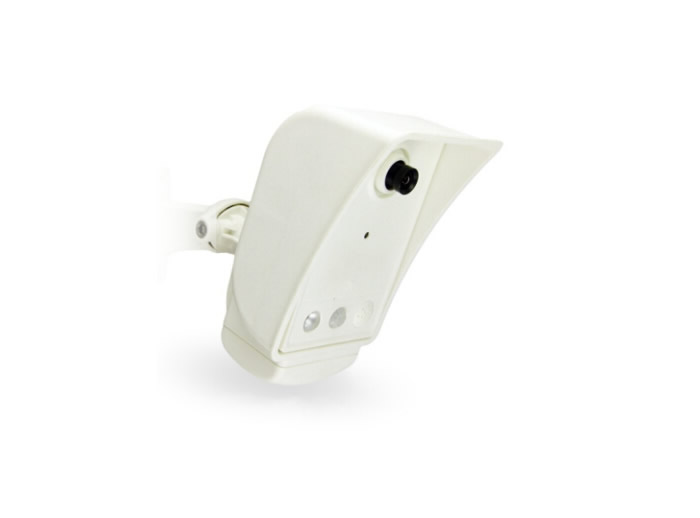

    • is a small motion activated camera,ideal for surveillance monitoring of:offices,Residences,etc
      Features:
      ■ Waterproof design.
      ■ Functional and smart design.
      ■ 1.3M Pixel.
      ■ Day & night maintenance free.
      ■ PIR Detector and Led Illumination.
      ■ Easy installation.
      ■ Multiple H.264,Motion JPEG and MPEG-4 video streams.
      ■ Two-way voice-the microphone and speaker.
      Specifications:

      • Model
      • M-3013
      • Sensor Type
      • 1/3"Progressive scan,COMS
      • Lens
      • f=4.2mm,F2.0
      • Light Sensitivity
      • 3 lux,F2.0; 0 lux with illumination LED on
      • Shutter Time
      • 1/5000s to 1/4s
      • Video
      •
      • Video Compression
      • H.264、M-JPEG、MPEG-4
      • Frame Rate
      • VGA-30f/s、HD720-26f/s、SXGA-18f/s
      • Resolutions
      • 640×480~1280×1024
      • Audio
      •
      • Audio Streaming
      • Half-duplex
      • Audio Compression
      • 8kHz、Mono、PCM
      • Audio In/out
      • Built-in microphone and speaker
      • Network
      •
      • Security
      • Password protection,IP filtering,Https encryption Supported Protocols
      • Supported Protocols
      • TCP,UDP,IP,HTTP,DHCP,PPPoE,RTP,RTSP
      • Ethernet
      • Ethernet(10/10 Base-T)
      • System integration
      •
      • Intelligent Video
      • Video motion detection
      • Alarm Triggers
      • PIR with Configurable sensitivity
      • Alarm Events
      • File upload via FTP,HTTP and email
      • Video Buffer
      • Pre-and post alarm
      • General
      •
      • Processor & Memory
      • ASoC3100
      • Power
      • 12V DC PoE DC48V
      • Connectors
      • RJ-45、DC ack
      • PIR Sensor
      • Max range:6m
      • Illumination LED
      • White illumination LED:1W
      • Operating Conditions
      • -10℃~+50℃
      • Dimension
      • 140×100×40mm
      • weight
      • 170g
      • Included Accessories
      • Power supply,stand,Installation Guide,CD with NVR recording software and User‘s Manual
