    • Particular

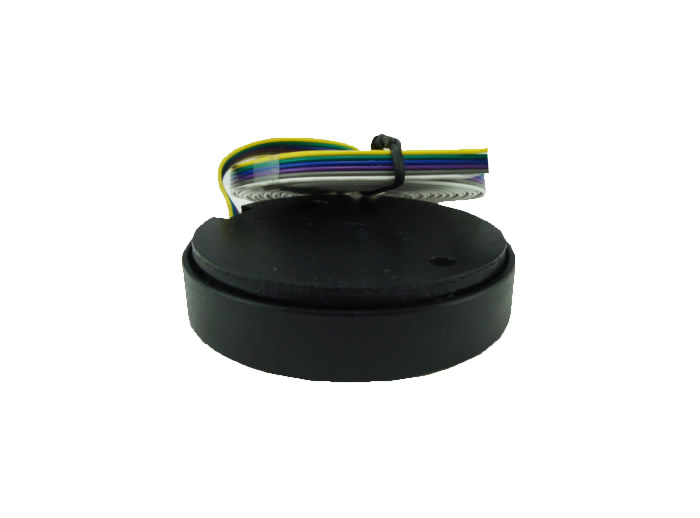

    • YL series are designed to protect valuable objects in museums, galleries and private places.The sensor protects objects.

      By continuously monitoring their weight. An alarm is triggered when object is moved or removed.

      Features

      ■ Easy to install.
      ■ Memorize and register weight of object.
      ■ Constantly monitor the weight of the object.
      ■ Six I/O connections: two for the power supply, two for relay output and.
      ■ The unit triggers an alarm when object is removed.
      ■ two for tamper output.

      Specifications：

      • Model
      • YL-005
      • Monitoring of material
      • 0.05-5kg
      • Model
      • YL-010
      • Monitoring of material
      • 0.05-10kg
      • Model
      • YL-020
      • Monitoring of material
      • 0.05-20kg
      • Sensitivity
      • 40g
      • Alarm output
      • NO Alarm
      • Input Voltage
      • 10～18 V
      • Current
      • ≤ 10 mA
      • Tamper Switch
      • yes
      • Operating temperature
      • -10℃ ～ +55℃
      • Dimensions
      • R: 80 H: 18 mm
      • Weight
      • 410g

      Optical View Pattern:
