Hi-Bay Occupancy Sensor
Product Features:
■ 8-Element IR Detector with unique optical lens design for Hi-Bay application.
■ SummerSense Warm-weather DSP: Good summertime detection.
■ Wide Range Operating Temperature (-40℃ to +55℃).
■ Adjustable 5s – 30min for relay “ON” time.
■ Adjustable sunset sensor to enable lighting only when ambient light is low.
■ Selectable Detection Sensitivity for different applications / environments.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ LED indicator for testing purpose.
■ Three-Stage White Light Protection.
■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling
Products specifications:
- Detection Range
- 8m diameter at 6m mounting height
- Mounting Height
- 4.0m -6.0m
- Relay Output
- Solid-state, 50mA,30VDC
- Solid-state, 50mA,30VDC
- 20V/m,10-1000MHz; 10V/m,1000-2000MHz
- Adjustable sunset sensor
- 100 lux – 3000 lux
- Operating Temperature
- -40℃ to +55℃

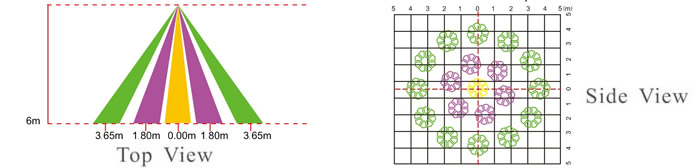

Optical View Pattern:
