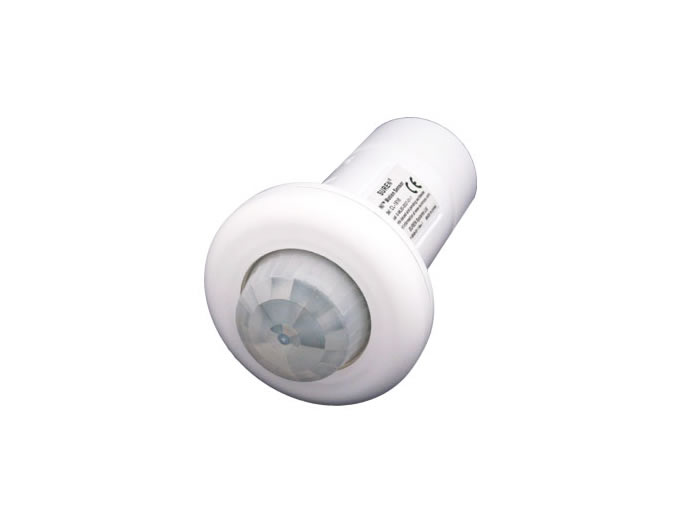

    • Super Wide range Occupancy sensor.
    • Model：
    • CL-1212HDM
    • Applications：
    • Commercial/Residential
    • Print：
    • NA

    Series：

    • CL-1816
    • CL-1212
    • CL-1212HDM
    • CL-1816HDM

    • Super Wide range Occupancy sensor
      Model：CL-1816HDM
    • Outdoor IR camera series (50 Meters)
      Model：FF-N50
    • Dual Tech Occupancy Sensor
      Model：CDL-608
    • Anti Masking Multi Technology Motion Detector(Anti-Masking)
      Model：M-5815AM
    • PIR Occupancy Sensor..
      Model：CL-106
    • Dual Technology Motion Detector-(European Version)
      Model：SX-815E
    • Particular

    • Product Features:

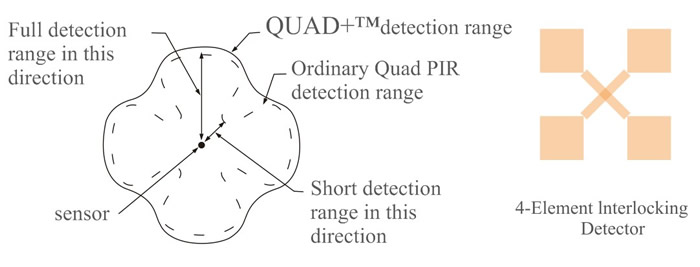

      ■ QUAD** 4-Element IR Detector for reliable detection within a 16-meter circle
      ■ SummerSense Warm-weather DSP: Good summertime detection
      ■ Bus (HDL Compatible)
      ■ Wide Range Operating Temperature (-40℃ to +55℃)
      ■ Adjustable 5s – 30m for relay “ON” time
      ■ Adjustable sunset sensor to enable lighting only when ambient light is low
      ■ Selectable Detection Sensitivity for different applications / environments
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ LED indicator for testing purpose
      ■ Three-Stage White Light Protection
      ■ Spring Clips Mount for drop ceiling

      Products specifications:

      • Detection Range
      • 12m diameter at 2.4m mounting height
      • Mounting Height
      • 2.3m – 4.0m
      • Communication Protocol
      • Bus (HDL Compatible)
      • Operating Power
      • 110/220/277Vac
      • Max. Loading
      • 2000W
      • Max. Load Current
      • 16A
      • RF Immunity
      • 20V/m 10-1000MHz; 10V/m 1000-2000MHz
      • Adjustable sunset sensor
      • 100 lux – 3000 lux
      • Operating Temperature
      • -40℃ to +55℃
      • Approvals
      • CE, CCC
      • Dimensions
      • 73mm x 128mm

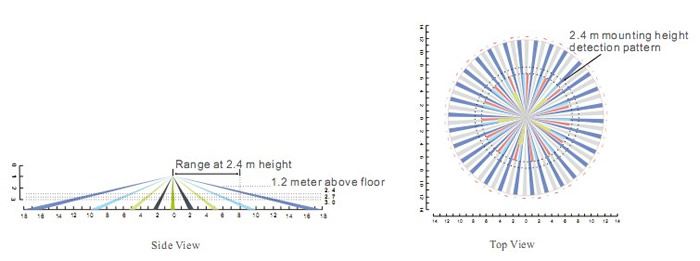

      Optical View Pattern:
