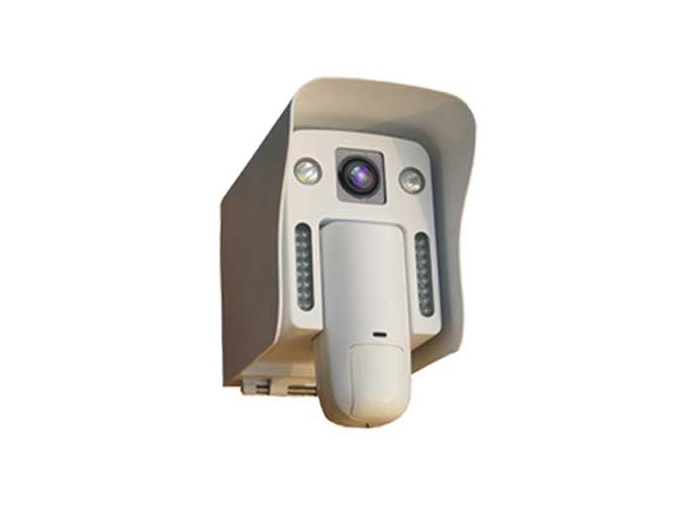

    • Multi-function surveillance system

      Product Features:
      ■ IP65 Waterproof Housing.
      ■ 1.3 M Pixel Camera.
      ■ Day/Night Operation with LED Illumination.
      ■ DFIR + Microwave (M-5815) Detector.
      ■ Multiple H.264, Motion JPEG and MPEG-4 video streams.
      ■ Two-way voice with microphone and speaker built-in.
      ■ Easy Installation.

      Products specifications:

      • Camera
      •
      • Sensor type
      • 1/3＂progressive scan,COMS
      • Lens
      • f = 4.2 mm，F2.0
      • Light sensitivity
      • 3 lux，0 lux with illumination LED on
      • Shutter time
      • 1/5000s to 1/4 s
      • Video
      •
      • Video compression
      • H.264、M-JPEG、 MPEG-4
      • Frame rate
      • VGA-30f/s,720P-26f/s、SXGA-18f/s
      • Resolutions
      • 640x480～1280x1024
      •
      •
      • Audio
      •
      • Audio streaming
      • Half-duplex
      • Audio compression
      • 8kHz、Mono、PCM
      • Audio in/out
      • Built-in microphone and speaker
      •
      •
      • Network
      •
      • Security
      • IP filtering Https encryption
      • Supported protocols
      • TCP,UDP,IP,HTTP,DHCP,PPPoE,RTP,RTSP
      • Ethernet
      • Ethernet (10/100 Base-T)
      •
      •
      • System integration
      •
      • Intelligent video
      • Video motion detection
      • Alarm triggers
      • PIR with configurable sensitivity
      • Alarm events
      • File upload via FTP, HTTP
      • Video buffer
      • Pre- and &post alarm
      • General
      •
      • Processor &memory
      • ASoC3100E
      • Power
      • 12V DC 24W
      • Connectors
      • RJ-45
      • PIR sensor
      • Max range: 15m
      • Illumination LED
      • White illumination LED: 1W + 1W
      • Operating conditions
      • -10℃to +50℃
      • Dimension
      • 170 x 250 x 400 mm
      • Weight
      • 2.35K g + 100g
      • Included accessories
      • Power supply, stand , Installation Guide, CD with NVR recording software and User’s Manual
