    • Standard Passive Infrared Motion Detector
    • Model：
    • SP-012
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • SP-012
    • SP-012PI
    • SP-012C
    • SS-10T

    • Pressure Detector Series
      Model：YL005-20
    • Dual Frequency Infrared Motion Detector
      Model：DF-2010PI
    • Micro-movement Infrared Motion Detector
      Model：CP-206
    • Dual Technology Motion Detector- X-TEC™
      Model：SX-810
    • Seismic Sensor
      Model：SS-2
    • Wireless Magnetic Contact
      Model：MC-800
    • Particular

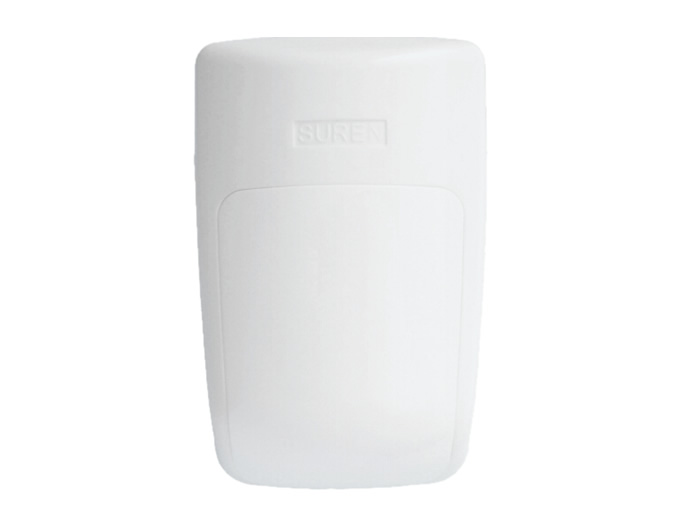

    • Wide Angle Standard Passive Infrared Motion Detector

      Product Features:
      ■ Digine Detector Amplifier - Digital operation & High immunity to RF, shock, temperature changes, white light, electrical surges
      ■ HighBar waveform processing rejects noise and provides reliable detection
      ■ Sensitive tamper switch
      ■ World-class immunity to RF interference
      ■ Look-down detection directly below the sensor, to catch wall-creeping intruders
      ■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
      ■ Three Stage White Light Protection

      Products specifications:

      • Detection Range
      • 12m
      • Operating Power
      • 8 – 16VDC
      • Operating Current
      • 18 mA at 12VDC
      • Alarm Relay
      • Reed type; 50 mA, 30VDC
      • Tamper Switch
      • Form A (NC) 50 mA @ 30VDC
      • RF Immunity
      • 20V/m10-1000MHZ;10V/m1000-2000MHZ
      • Sensitivity
      • 2-event or 3-event(selectable)
      • Operating Temperature
      • -10 °C to +55 °C
      • Dimensions
      • 94 x 50 x 42 mm ( H x W x D )

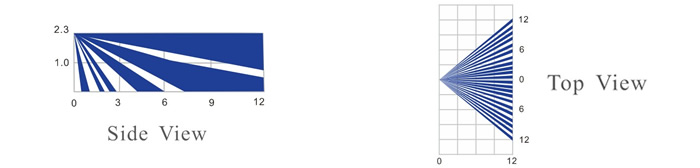

      Optical View Pattern:
