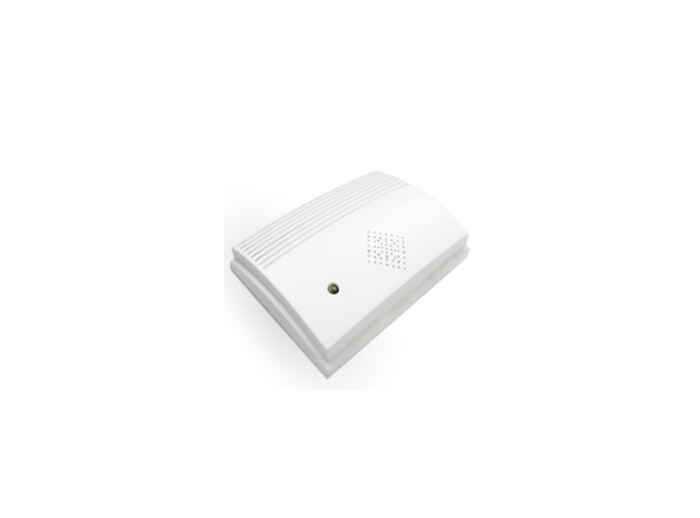

    • Glass break detector.
    • Model：
    • GB-306W
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • PL-10W
    • GD-205W
    • GB-306W
    • SL-800

    • wireless passive infrared motion detector
      Model：CS-106AW
    • Dual Frequency Infrared Motion Detector...
      Model：DF-5015
    • Dual Frequency Infrared Motion Detector..
      Model：DF-2010C
    • Shock Detector
      Model：SS-10T
    • Ceiling Mount
      Model：CS-106
    • Professional Passive Infrared Motion Detector(Curtain)
      Model：SP-215C
    • Particular

    • Detects breaking of all glass types: simple glass, tempered glass, art glass, armoured glass, compound glass, glass coated with polymer film, hollow glass blocks, glass packets.

      Features:

      ■ Wireless transmission distance of 100 meters ( open )
      ■ Multilevel microprocessor controlled signal analysis
      ■ Compatibility with various types and sizes of glass.
      ■ Immunity to acoustic noise, static discharges, noise in power supply lines, electromagnetic interference.

      Specifications：

      • Specifications / Model
      • GB-306W
      • Transmitting Frequency
      • 433.92MHz± 75KHz
      • Transmission Distance
      • 100 m （ open ）
      • Detection range
      • 6 m
      • Size of monitored glass
      • Not less than 0.3 X 0.3 m
      • Tamper Switch
      • Yes
      • IP rating
      • IP 30
      • Input Voltage
      • 3V
      • Current
      • ≤ 30 mA
      • Battery Life
      • 2 year ( CR123,1500mAH )
      • Operating Temperature
      • -２0℃ ～ +45℃
      • Dimensions
      • 99 x 69 x 38.5 mm
      • Weight
      • 104 g (with battery)

      Installation:
