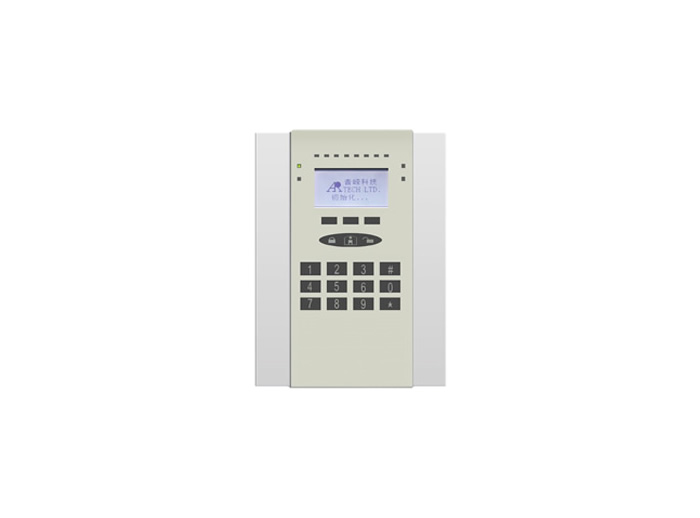

    • GSM Alarm Control Panel
    • Model：
    • AI-185
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • PIR-800
    • AI-185
    • MC-800
    • RC-800

    • Ultra-Sensitive Dual Tech Presence Sensor
      Model：CDP-808
    • Wireless Magnetic Contact
      Model：MC-800
    • Alarm Control Panel
      Model：CP-108
    • LED Tube Series-0.6m
      Model：T-810
    • Volumetric Detector
      Model：VU-1
    • Curtain PIR with LED lighting
      Model：PL-10
    • Particular

    • is a GSM wireless security,fire & medical alert control panel

      Features:

      ■ User friendly operation.
      ■ One touch emergency dialing.
      ■ Alarm reporting through GSM network.
      ■ 8 wireless zones and 4 wired zones
      ■ LED zone/sensor to indicate remote zone status.
      ■ Choices of housing colors to match interior decoration
      ■ GSM remote control to Arm/Disarm alarm system.auto-gate & lightings etc.
      ■ Built-in rechargeable battery allowing 24 hours backup power to the system
      ■ Hand free two ways voice communication during medical alert activation

      Specifications：

      • Specifications / Model
      • AI-185
      • Zone
      • 8 wireless,4 Wired
      • Receive Phone
      • 6
      • Event Log
      • 50
      • Tamper Switch
      • Yes
      • Receiving frequency
      • 433.92MHz±75KHz
      • Transmitting frequency
      • 315MHz±75KHz
      • GSM Frequency
      • 900/1800MHz Dual automatic switching
      • Input Voltage
      • 15V DC(Back-up battery:9.6V/2100mA/h)
      • Current
      • ≤45mA(Standby;≤400mA(Alarm)
      • Operating temperature
      • -10°C ～+40°C
      • Dimensions
      • 238×160×38mm
      • Weight
      • 982g

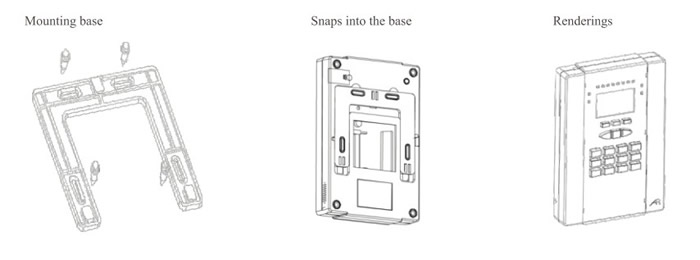

      Installation:
