Street Lighting Sensor
Product Features:
■ 8-Element IR Detector with unique optical lens design for Hi-Bay application.
■ Work with Zigbee or LonWorks? Protocol.
■ Wide Range Operating Temperature (-40℃ to +55℃).
■ Adjustable 5s – 30min for relay “ON” time.
■ Adjustable sunset sensor to enable lighting only when ambient light is low.
■ Selectable Detection Sensitivity for different applications / environments.
■ Three-Stage White Light Protection.
Products specifications:
- Detection Range
- 8m diameter at 6m mounting height
- Mounting Height
- 4.0m -6.0m
- Operating Power
- 110/220/277VAC
- Communication Protocol
- Zigbee / LonWorks
- RF Immunity
- 20V/m,10-1000MHz; 10V/m,1000-2000MHz
- Adjustable sunset sensor
- 100 lux – 3000 lux
- Operating Temperature
- -40℃ to +55℃

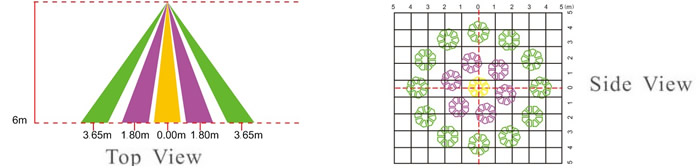

Optical View Pattern:
