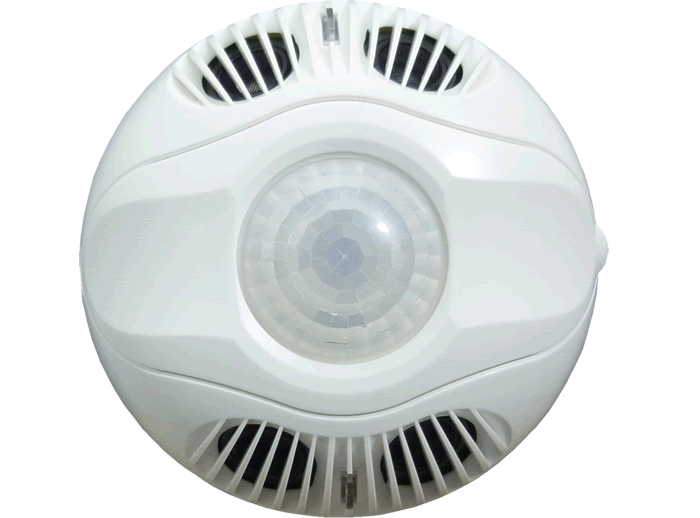

Ultra-Sensitive Dual Tech Presence Sensor, HDIR + Ultrasonic
Product Features:
■ HDIR 8-Element IR Detector plus Ultrasonic technology to ensure the best detection performance.
■ Operating Mode Selection: Test / Single Tech / Multi Tech / Walk-through.
■ PIR turns the light ON and both technologies keep the light ON / Both technologies turns the light and keeps the light ON (Selectable).
■ Adjustable 5s – 30min for relay “ON” time.
■ Adjustable sunset sensor to enable lighting only when ambient light is low.
■ Adjustable PIR & Ultrasonic sensitivities for different applications / environments.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ LED indicator for testing purpose.
■ Three-Stage White Light Protection.
■ Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling.
Products specifications:
- Detection Range
- 8m diameter at 2.4m mounting height
- Mounting Height
- 2.3m – 4.0m
- Operating Power
- 110/220/277VAC
- Ultrasonic Frequency
- 40kHz
- RF Immunity
- 20V/m,10-1000MHz; 10V/m,1000-2000MHz
- Adjustable sunset sensor
- 100 lux – 3000 lux
- Operating Temperature
- -10℃ to +55℃
Optical View Pattern:
