Ceiling Mount Professional Passive Infrared Motion Detector,Pyroflex
Product Features:
■ PYROFLEX IR Detector: Less amplification & less gain for false alarms.
■ SureSpot ASIC microcontroller waveform processing.
■ SummerSense Warm-weather DSP: Good summertime detection.
■ Wide Range Operating Temperature (-40oC to +55oC).
■ Sensitive tamper switch.
■ World-class immunity to shock, white light, temperature, RF, electrical surges.
■ Tightly-mated bug guard protects the sensor optics from insects, spiders and dust.
■ Three Stage White Light Protection.
■ Spring Clips mounting for drop ceiling.
Products specifications:
- Detection Range
- 6m at 2.4m mounting height
- Operating Power
- 8 – 16VDC
- Operating Current
- 18mA at 12VDC
- Alarm Relay
- Solid state , 50mA,60VDC
- Tamper Switch
- Form A (NC) 50 mA @ 30V DC
- Mounting Height
- 2.3m – 6.0m
- RF Immunity
- 20V/m,10-1000MHZ;10V/m,1000-2000MHZ
- Sensitivity
- 2-event or 3-event(selectable)
- Operating Temperature
- -40 °C to +55 °C

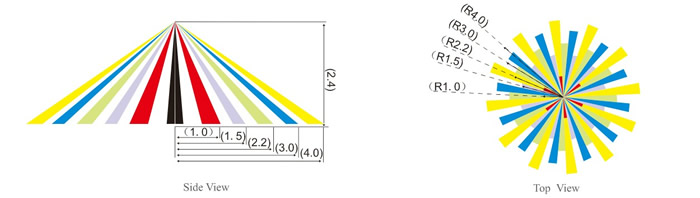

Optical View Pattern:
