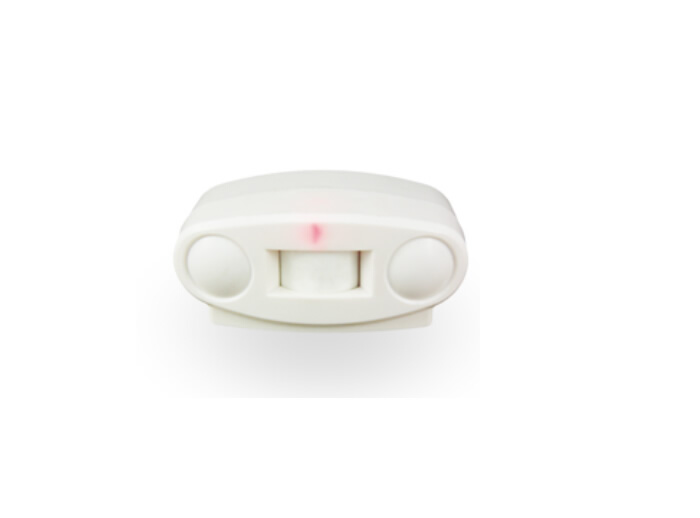

    • Wireless Curtain Detectors
    • Model：
    • PL-10W
    • Applications：
    • Commercial/Residential
    • Print：
    • Brochure

    Series：

    • PL-10W
    • GD-205W
    • GB-306W
    • SL-800

    • Portable Home Ozonato.
      Model：ARO-8001
    • Dual Technology Motion Detector- X-TEC™
      Model：SX-810
    • Standard Passive Infrared Motion Detector(Curtain).
      Model：SP-112C
    • Wide Angle Dual Frequency Infrared Motion Detector
      Model：DF-2010
    • LonWorks™ Enable PIR Occupancy Sensor
      Model：CL-106PL
    • Multi Technology Motion Detector- M-TEC™
      Model：M-2015
    • Particular

    • For doors and windows.

      Features：

      ■ Mounting height up to 5 meters
      ■ Adjustable mounting angles
      ■ Low-battery indicator
      ■ Tamper switch

      Specifications：

      • Specifications / Model
      • PL-10W
      • Encoding
      • Special codes
      • Transmission Distance
      • 100 m （ open ）
      • Operating Frequency
      • 433/315MHz
      • Detection angle
      • 11°,6 m
      • Alarm output
      • Wireless Alarm
      • Battery Life
      • ≥1year
      • Input Voltage
      • 3V （ 2 x ，1.5V AAA ）
      • Current
      • ≤ 35uA （Standby）； 15 mA （ Alarm ）
      • Operating temperature
      • -30℃ ～ +55℃
      • Dimensions
      • 80 x 47 x 40 mm
      • Weight
      • 60 g

      Installation:
