Model: GB-406ZB Tuya
Model: GB-706W
Designed specifically to detect breakage of all common glass types
Compatible with multiple glass types: float, tempered, decorative, safety, laminated, polyester-film-coated, hollow glass blocks, etc.
Wireless alarm output
Built-in tamper switch prevents unauthorized opening
Supports custom wireless module integration (Tuya, Zigbee, Bluetooth, RF, etc.)
Built-in RF transmitter with selectable frequency options (319.5MHz / 433.92MHz / 345MHz) to meet project requirements
Activates Form-A-NC-relay contacts to trigger alarm signal and control circuit

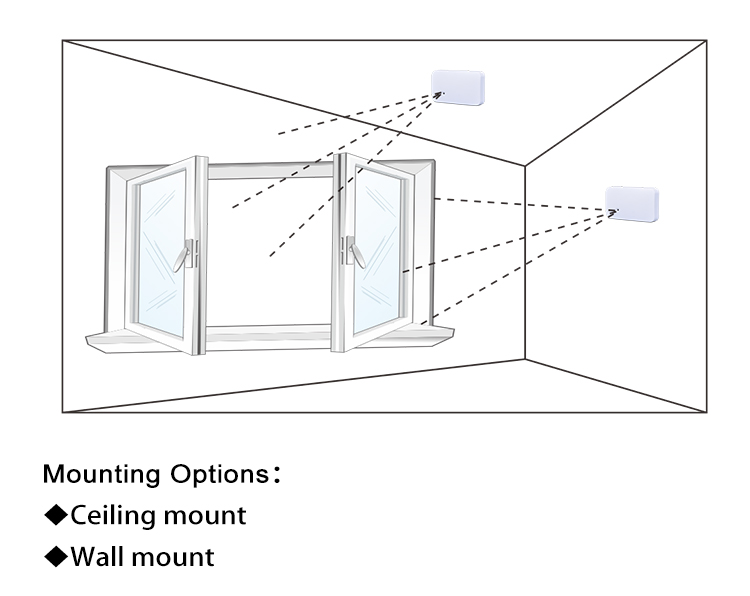

Mounts on ceiling, wall, or between protected glass and curtain
Optional display of indoor operating status and ambient noise
Product OverviewGB-706W Wireless Glass break detector
Designed specifically to detect breakage of existing glass in all common structures, suitable for various glass types and sizes: float glass, tempered glass, decorative glass, safety glass, laminated glass, polyester-film-coated glass, insulating glass units, and more, with wireless alarm output. Acoustically detects breaking glass and transmits alarms wirelessly to the security panel. Supports custom wireless module integration (Tuya, Zigbee, Bluetooth, RF, etc.) for flexible compatibility with various alarm systems.
SpecificationsSpecifications：
GB-706W | |
RF Frequency | by customer(319.5MHz、433.92MHz、345MHz) |
Transmission Range | 100 m(Line of Sight) |
Detection Range | Maximum 6 m |
Min.Size of Monitored Glass | ＞ 0.3 x 0.3 m |
Tamper Switch | Yes |
IP Rating | IP 30 |
Standby Current | ≤ 65 uA |
Operating Temperature | -10°C ~ +50°C |
Power | 3V Battery(1 × CR123) |

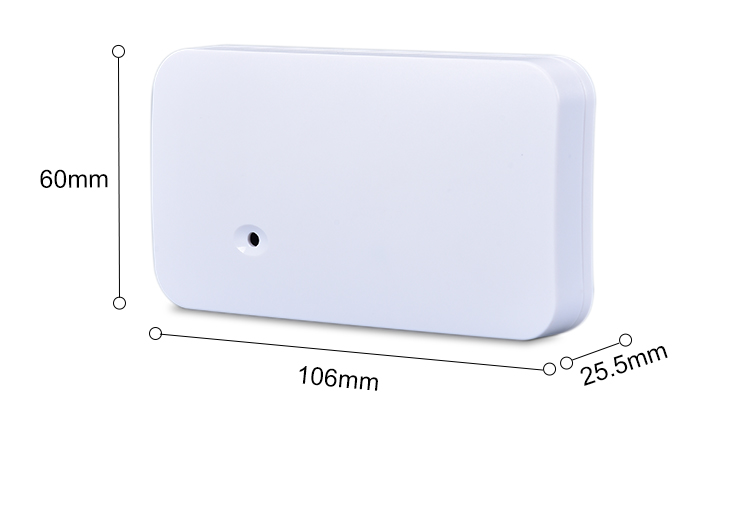

Dimensions | 106 x 60 x 25.5 mm |
InstallationProduct Information：
Side： |

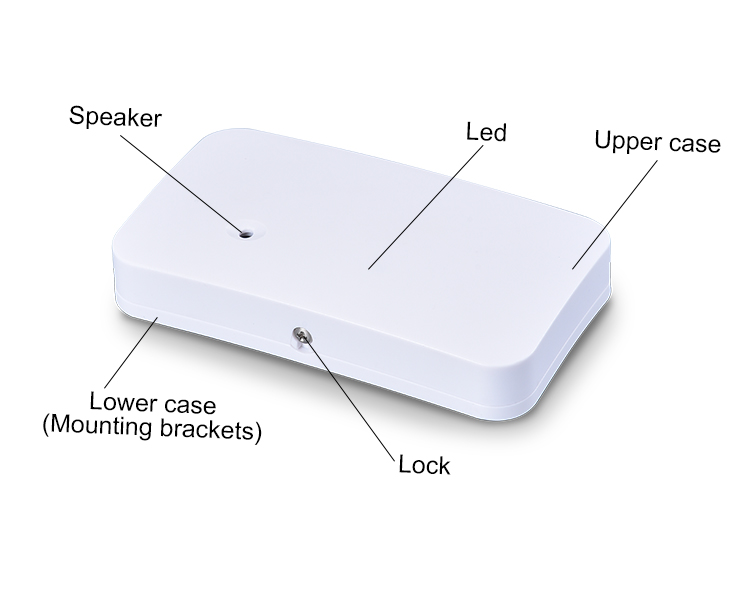

Front： |

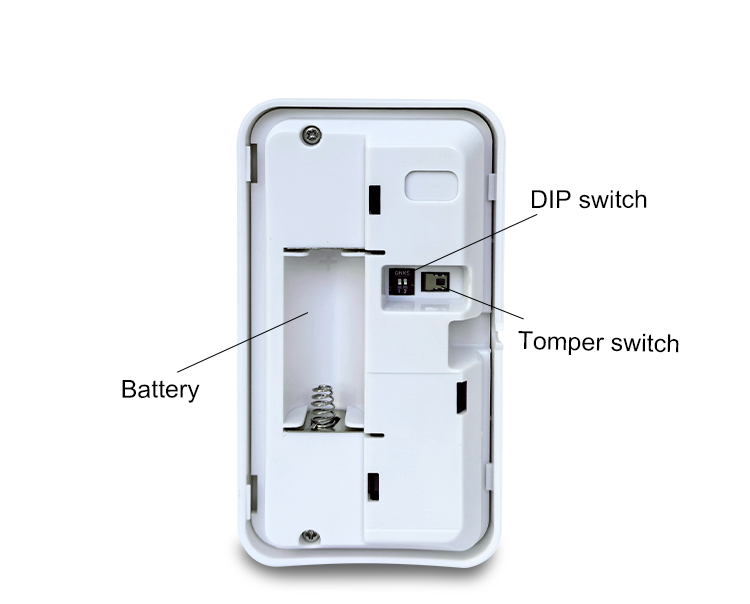

Inside： |
正面：
示意图： |
J3 Connector (for Custom Wireless Module Integration)：
Provides alarm, tamper, low battery detection, and power interfaces for custom wireless module integration (Tuya, Zigbee, Bluetooth, RF, etc.). For detailed pin definitions, please refer to the product manual.
Additional Resources：
Download
