Model: HBOD-0608D124 (for Lighting Control)

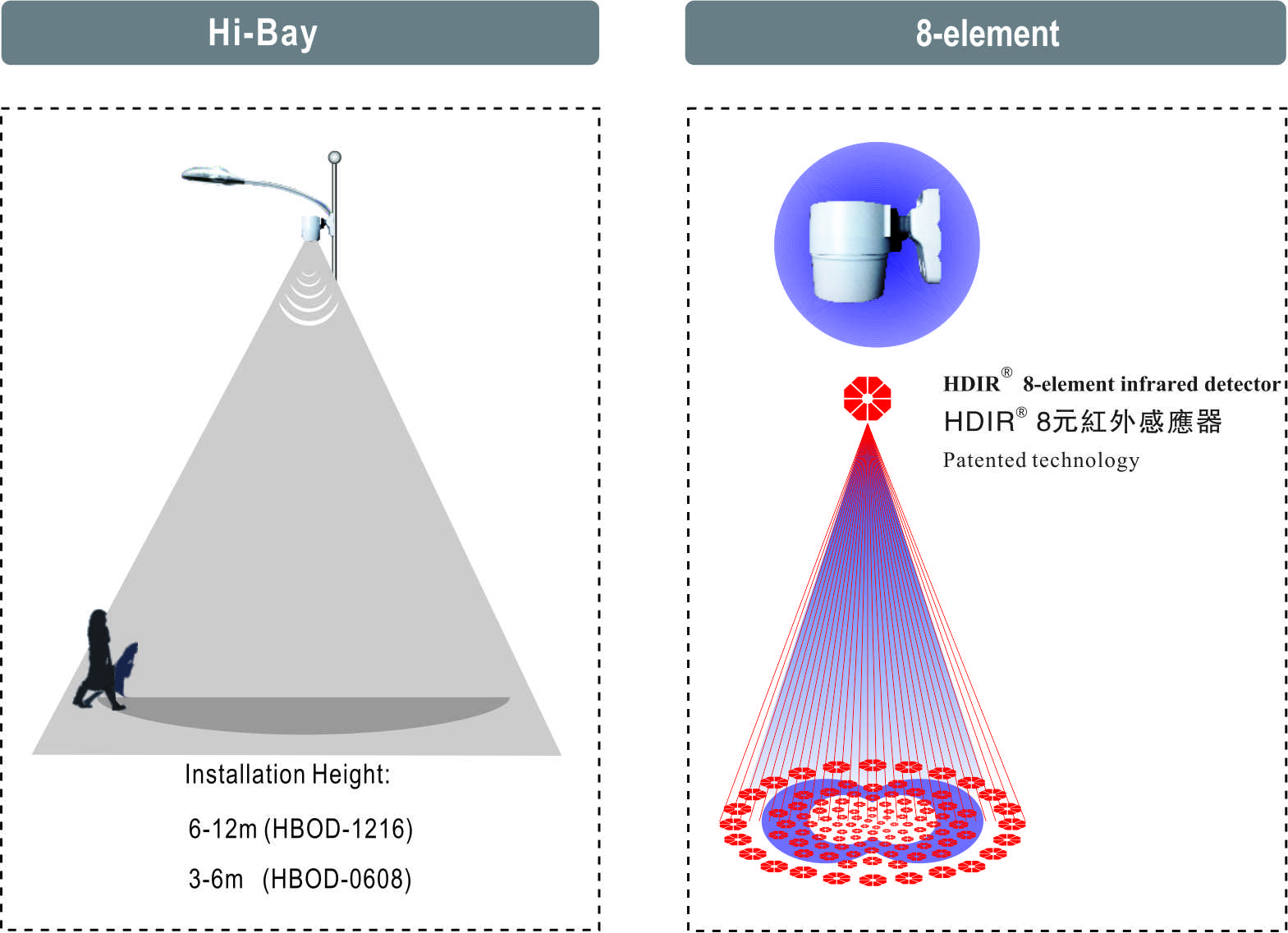

● 8-Element IR Detector with unique optical lens design for Hi-Bay application

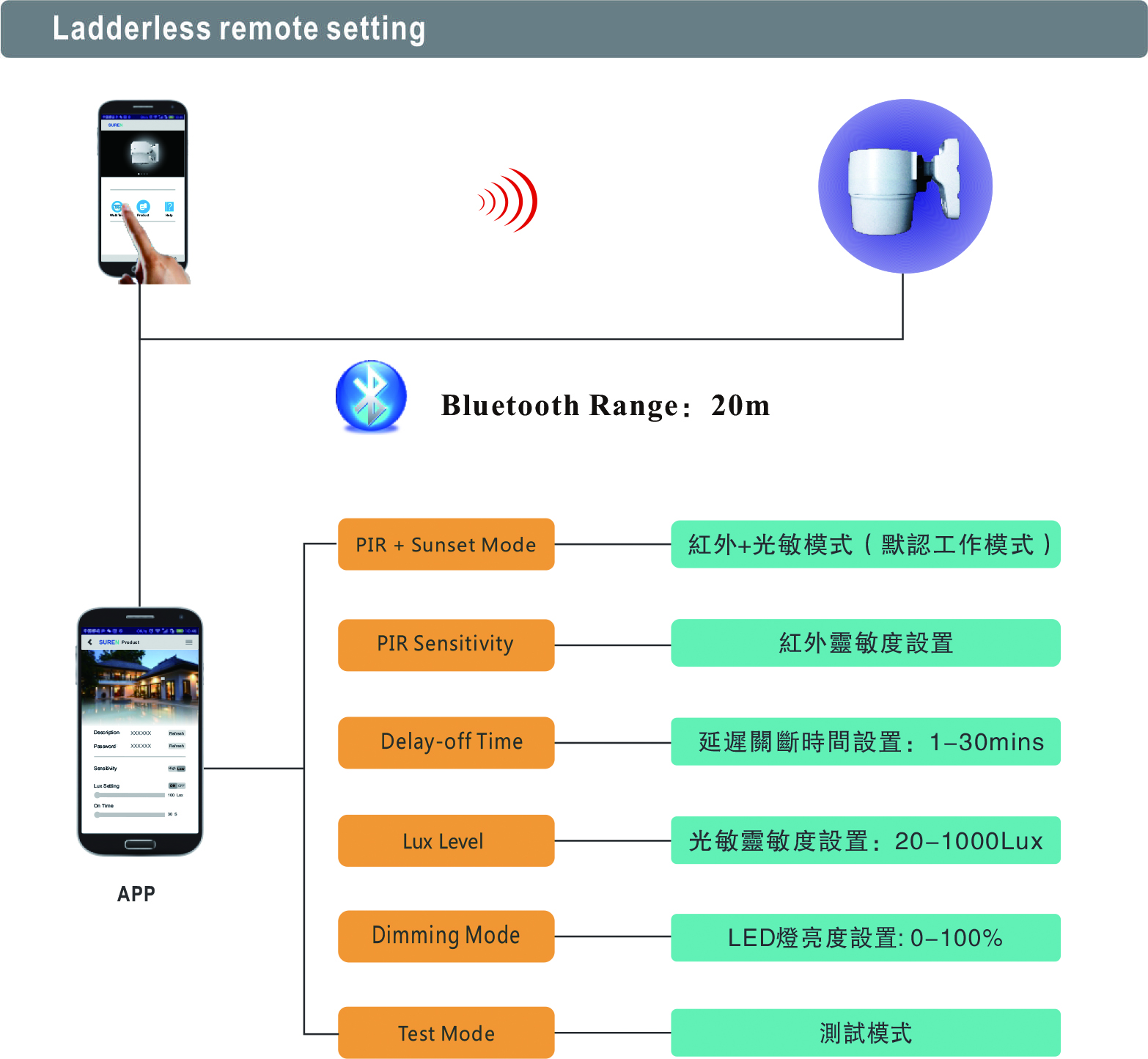

● Ladderless remote setting (Bluetooth App for parameter settings)
● Adjustable 1s-30 min for delay “OFF” time
● Dimming Control
● Adjustable lux level for turning light on
● Selectable “High / Low” detection sensitivity
● Wide Range Operating Temperature(-20℃~60℃)
Product DetailsProduct Overview

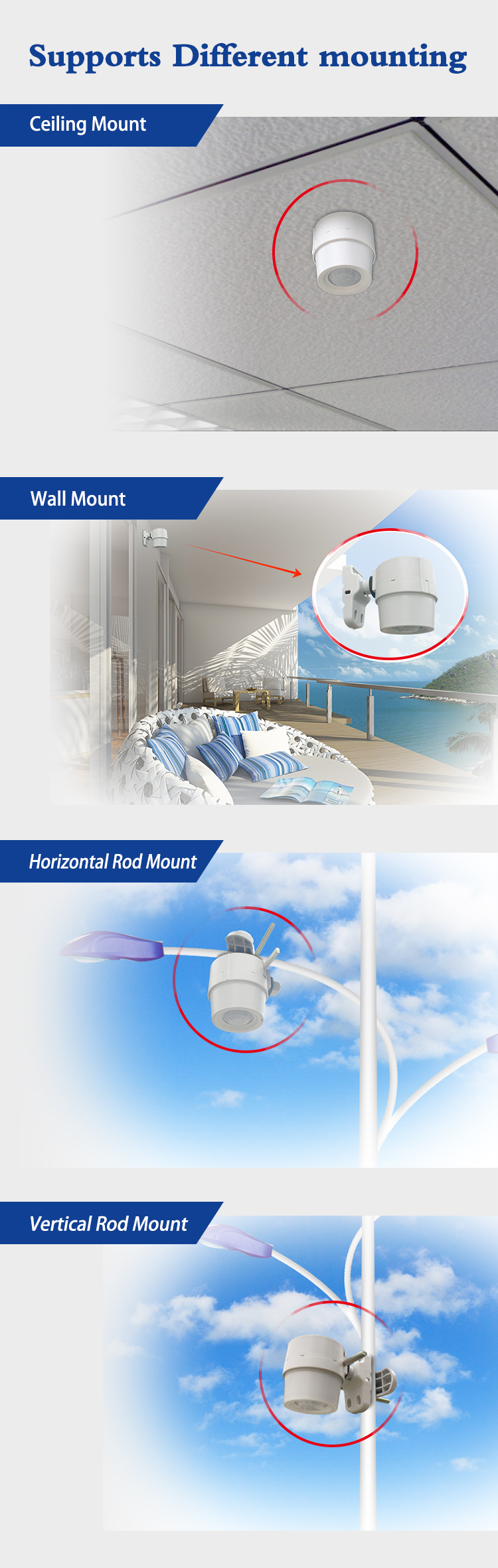

HBOD-0608/1216 D124 is a patented HDIR® occupancy motion sensor with Suren’s proprietary multi-segment lens array. Mounted at a height of maximum 6m or 12m .
Specifications
HBOD-0608D124 | |
Detection Range | 8m diameter at 6m mounting height |
Mounting Height | 3~6m |
Operating voltage | +12~24VDC |
Bluetooth range | 20m |
Lux sensor | 1 ~4000Lux |
Delay-offtime | 1s ~ 30Min |
Operating temp | -40～60℃ |
Waterproof standard | IP65 |
Dimensions | Φ80mm x 80mm |
