Model：CS-206 Ceiling
● HDIR® 8-element infrared sensor – delivers micro-motion detection capability, detecting subtle human movements (e.g., hand motion), suitable for high-security environments
● SummerSense™ DSP processing – maintains normal operation even when summer ambient temperature approaches human body temperature
● Sealed insect shield – effectively prevents insects, dust, etc. from entering the optical chamber
● Comprehensive interference immunity – against vibration, white light, RF, temperature variation, and surges
● Wide operating temperature – -40°C to +55°C
Product OverviewProduct Overview
The CS-206HDIR is a motion detector based on SUREN HDIR® passive infrared technology, designed to detect human presence by sensing very small motions. Suitable for high-security applications.
SpecificationsDetection Range | 6m at 2.4m mounting height |
Operating Voltage | 8-16VDC |
Operating Current | 20mA at 12VDC |
Alarm Relay | Solid-state Form A, 50mA, 30VDC |
Mounting Height | 2.3m-4.0m |
RF Immunity | 20 V/m 10-1000 MHz;10 V/m 1-2 Ghz |
Sensitivity | 1-event or 2-event (selectable) |
Operating Temperature | -40℃ to +55℃ |
Dimensions | D93 mm * 38 mm |

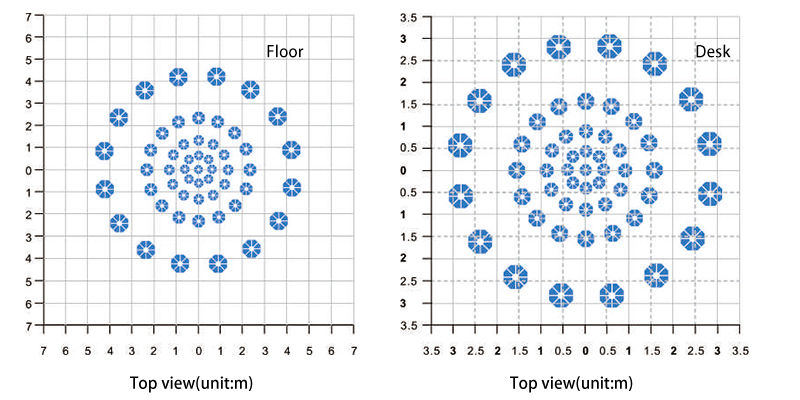

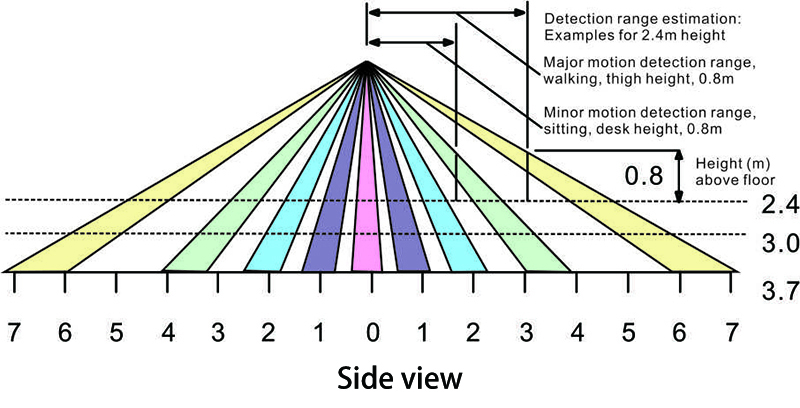

AdditionalInfoOptical View Pattern
Technology
HDIR® Micro-movement technology
SummerSense™ DSP Processing
SummerSense™ DSP processing ensures reliable operation even when ambient temperature approaches human body temperature during warm weather. Using microcontroller-based response with multi-threshold adjustment, the detector maintains consistent detection performance under challenging thermal conditions.
