X-TEC™ Dual Technology Motion Sensor

Model: CX-806 Microwave Doppler technology + PYROFLEX™ IR detector

● Microwave Doppler technology plus PYROFLEX™** Together, they create X – TEC™ high performance

● SureSpot™ microcontroller waveform processing finds intruder signals among the complex curves and dips of real-world signal waveforms

● Continuous supervision of: Power supply voltage; Ambient temperature; IR detector operational parameters

● Look-down detection directly below the sensor to catch wall-creeping intruders

● Sensitive tamper detection switch

● Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust

● Multiple white light immunity features

● Automatic single-technology operation if one technology fails

● Selectable processing sensitivity for different environmental requirements

Inquire Now

Product Overview
Specifications
AdditionalInfo
Download

Product Overview

Product Overview

The CX-806 is a professional motion detector featuring microwave Doppler + passive infrared dual technology. Signals are jointly processed by SUREN-proprietary algorithms to detect intruders while rejecting false alarm conditions.

Specifications

Specifications：

Detection Range	6m diameter with sensor mounted at 2.4m height
Power Supply	Voltage		Current
	8-16V DC		16 mA at 12VDC
Microwave Frequency	9 – 11 GHz, according to country where sold
Alarm Relay	S5o0li0 V d stramte F s isoorm A (NC) 50 mA 30 V;
Tamper Switch	Form A (NC) 50 mA @ 30V DC
RF Immunity	20 V/m 10-1000 MHZ;10 V/m 1-2 GhZ
Sensitivity	2-event/1.5 C or 3-event/2.0 C
Temperature	-40℃ ~ +55℃
Qualifications	(Europe) EN50131-2-4 Grade-2
Housing	High-impact ABS
Dimensions	128 X 40mm(Diameter X Height)
Optical fields-of-view	Long Range	Mid Range	Short Range	Look-down
	48	48	16	10

AdditionalInfo

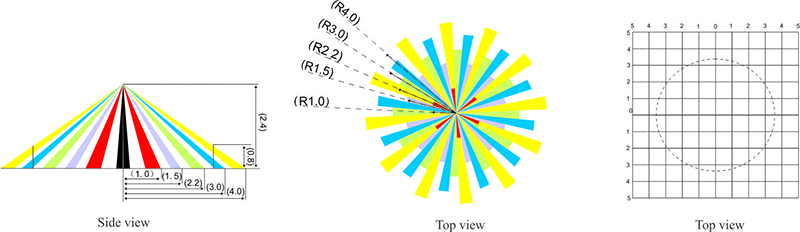

Optical View Pattern

Technology (X-TEC™=Microwave Doppler technology + PYROFLEX™ IR detector)

Microwave Doppler Technology

The microwave Doppler technology accurately identifies intrusion signals while filtering out constant motion interference such as fans and ceiling fans. Unaffected by ambient temperature changes, it delivers high efficiency and reliable stability.
