Mode: FC-306

● PIR passive infrared technology detects infrared energy changes from moving occupants

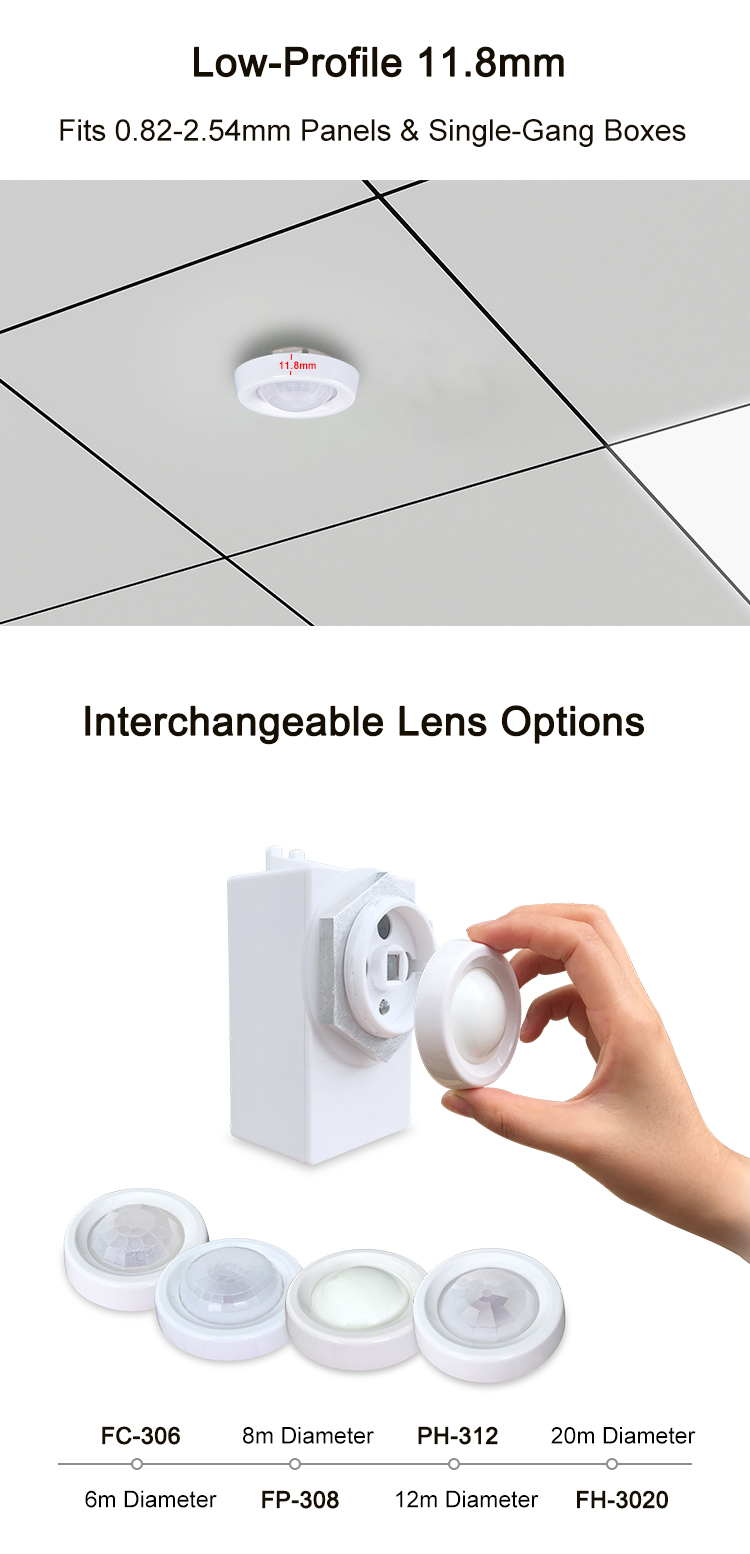

● 4 optional lenses available (6m / 8m / 12m / 20m detection diameter) for flexible coverage selection based on space size

● Slim, low-profile design allows installation inside lighting fixtures

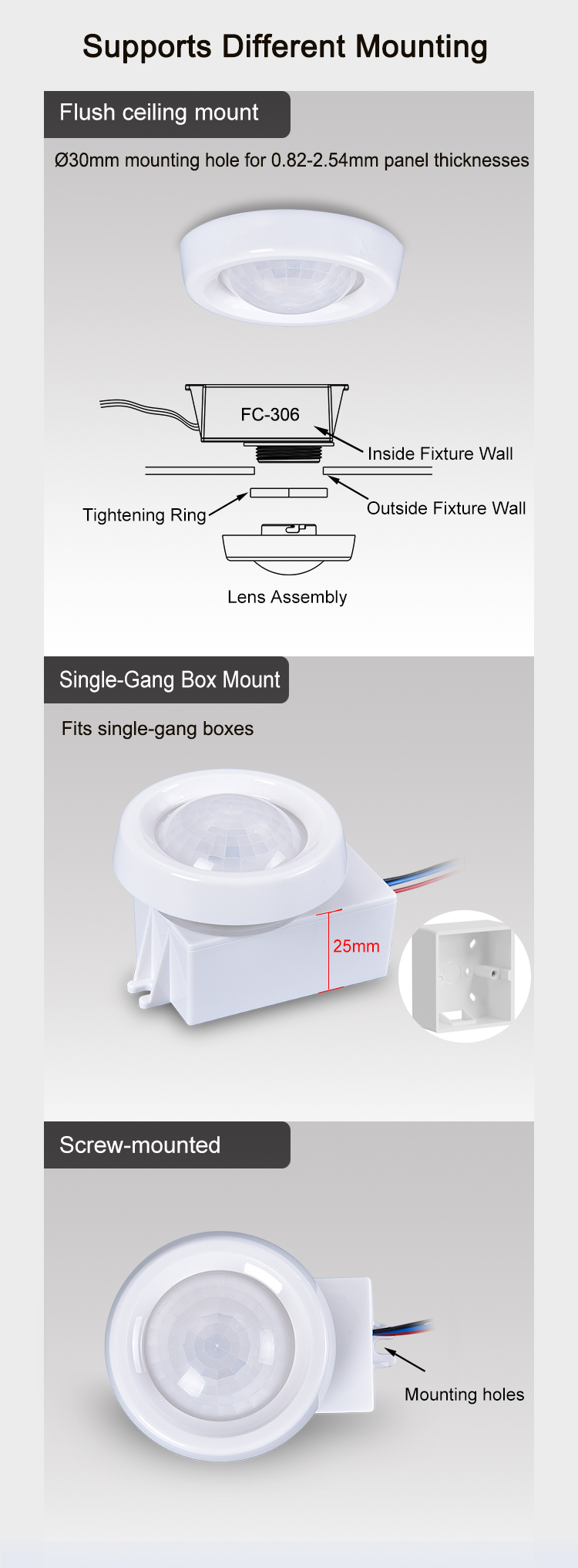

● Supports multiple mounting options to accommodate various fixture types and site conditions

● Standard 30mm knockout with locking ring for quick, secure embedded installation in most fixtures

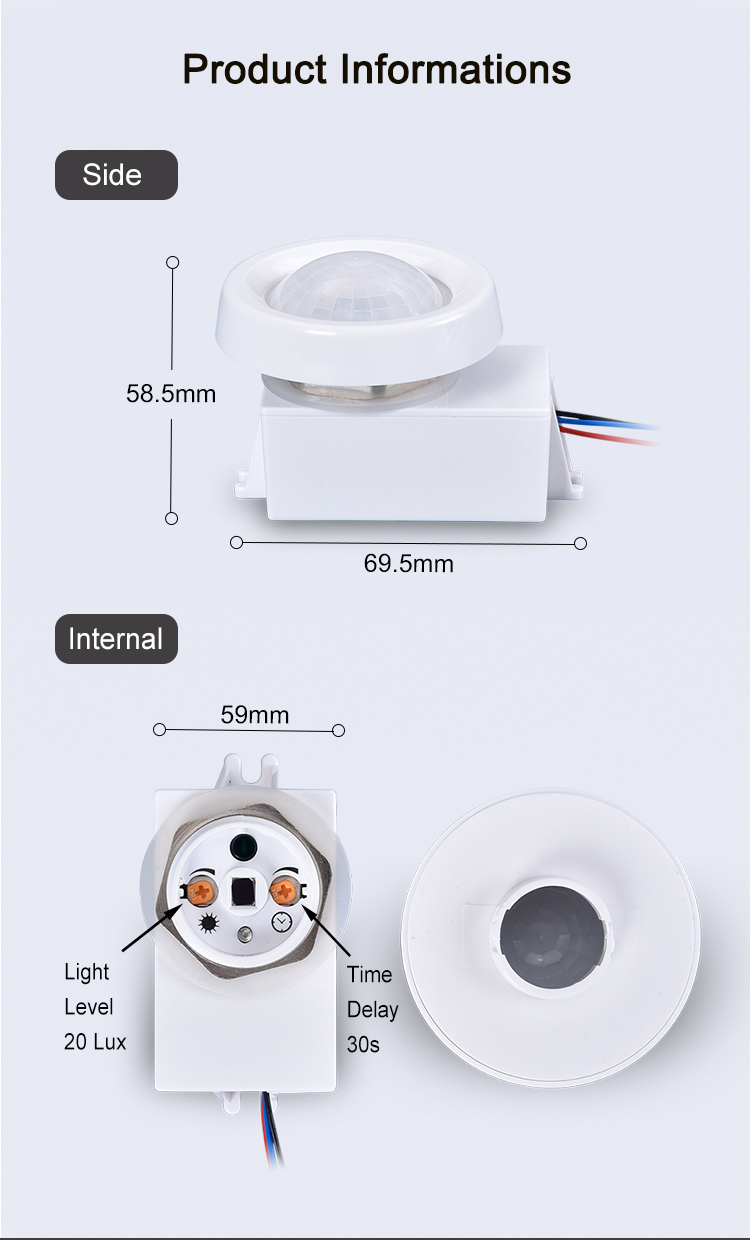

● Adjustable off-delay from 30s to 30min and lux threshold from 20–100Lux for customized energy-saving strategies

● High-impact ABS housing with -10℃ to +55℃ wide operating temperature range reduces long-term maintenance costs

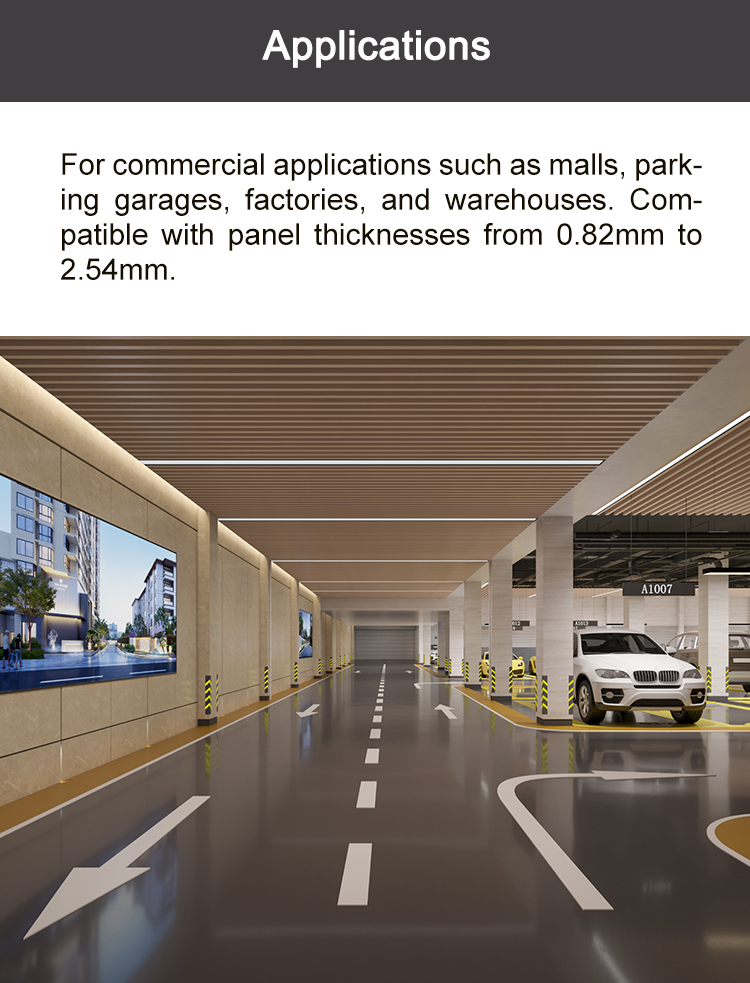

● Ideal for offices, corridors, warehouses, parking areas, and other spaces requiring automatic lighting control
