Mode: CP-1308
● HDIR®8-Element IR Detector with unique optical design for small-motion detection within a 8-meter circle
● Adjustable PIR sensitivities for different applications/environments
● Adjustable sunset sensor to enable lighting only when ambient light is low
● Adjustable 30s - 30min for Delay - Off time
● LED indicator for testing purpose

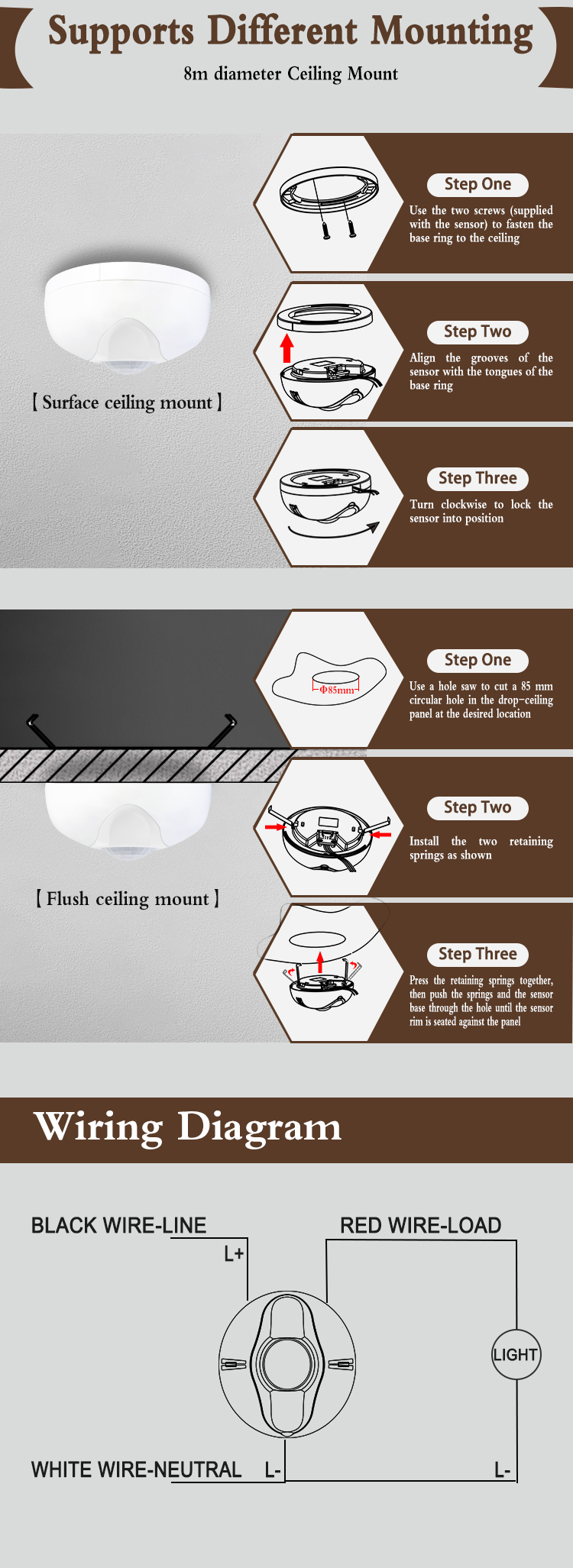

● Spring clips mount for drop ceiling & trim ring for solid ceiling
Product OverviewProduct Overview

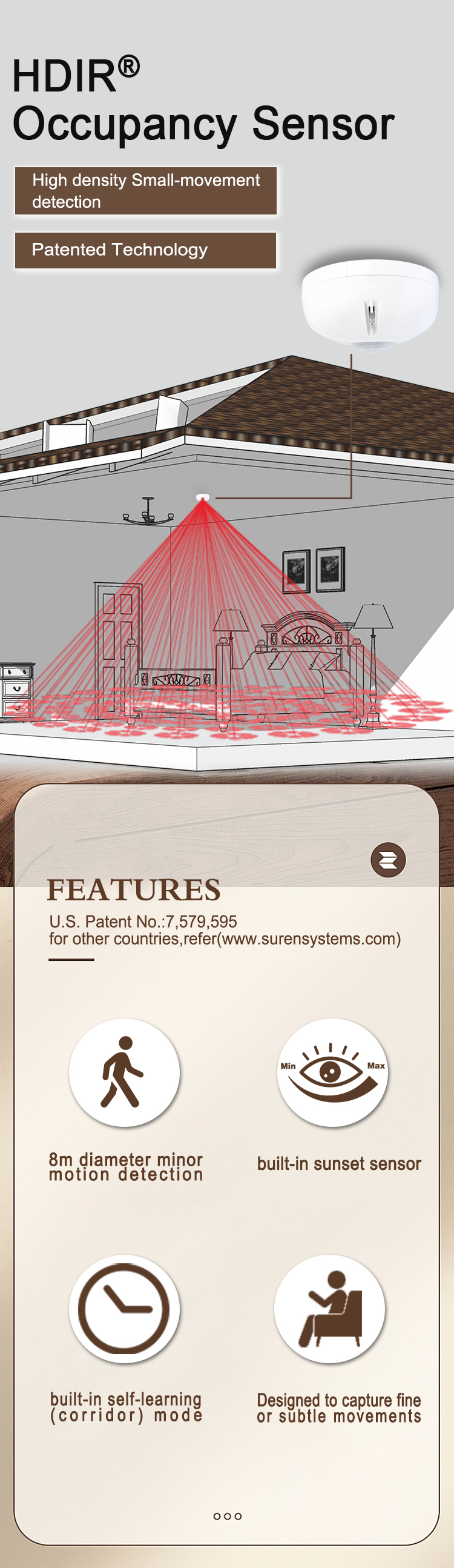

CP-1308 is a motion sensor with SUREN's proprietary 8-element pyros and multi-segment lens array. Mounted at a height of 2.4m, this sensor provides full circular 8m diameter detection for minor motion, e.g. hand movement of people in that area.
CP-1308 can be surface mounted or flush mounted for an attractive, unobstructive appearance. The sensor is fitted with a high-capacity relay that is capable of driving a wide range of load types, including lighting or HVAC devices.
Specifications
CP-1308 | |
Mounting Height | 2.4m |
Detection Range | 8m Diameter |
Input Power | 85 - 277VAC |
PIR | 8-element Pyroelectric |
Adjustable Sunset Sensor | 20Lux ~ 320Lux |
Max. Load Current | 5A |
Approval | CE |
RF Immunity | 20V/m10-1000MHz; 10V/m1000-2000MHz |
Operating Temperature | -10℃ ~ +55℃ |
Relative Humidity | 0% ~ 90% non-condensing |
Dimensions | 110mm D x 56mm H |
