Model: ACP-1008ZB Tuya
Model: GB-406ZB Tuya
● Microprocessor-based acoustic analysis accurately identifies breaking glass and minimizes false alarms, with alerts sent instantly to the gateway via Zigbee
● 13ft (Approx. 4m) detection range covers standard glass doors and windows
● Compatible with 3/16 or 1/4 inch plate or tempered glass, minimum glass size 11.8 × 11.8 inche
● Powered by a single CR123A battery with low-power design for extended battery life
● LED indicators clearly display network and device status
● Supports low battery and tamper alerts
● For residential, office, retail, museums, exhibition halls, banks, schools, hospitals, and other premises requiring glass door/window security protection.
Product OverviewGB-406ZB Tuya Zigbee Wireless Glass break detector
The GB-406ZB Tuya is a wireless glass break detector that uses Zigbee protocol to send alerts to the gateway upon detecting the sound of breaking glass.
SpecificationsSpecifications：
GB-406ZB Tuya | |
Wireless Protocol | Tuya Zigbee |
Battery | 3V Lithium (1 × CR123) |
Detection Range | 4 m |
Min. Glass Size | ≥ 11.8 x 11.8 in |
Alarms | Low Battery, Tamper |
Operating Temperature | -10°C ~ +50°C |
Glass Compatibility | 3/16 or 1/4 inch plate or tempered glass |

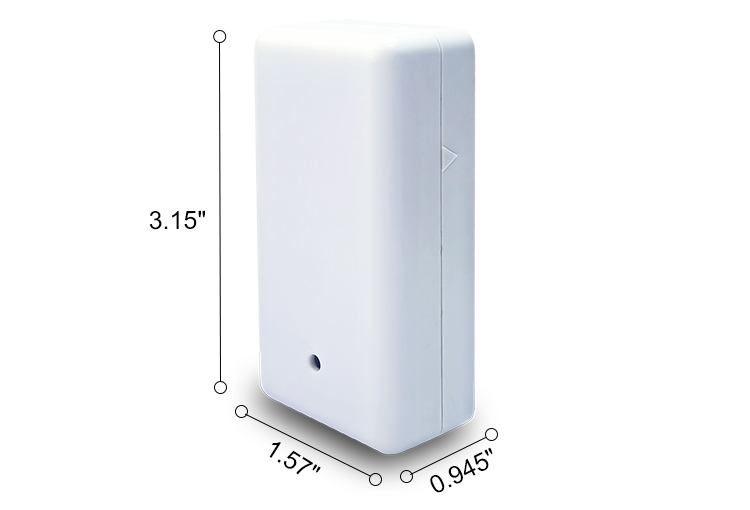

Dimensions | 3.15 x 1.57 x 0.945 in （H x W x D） |
InstallationProduct Information：

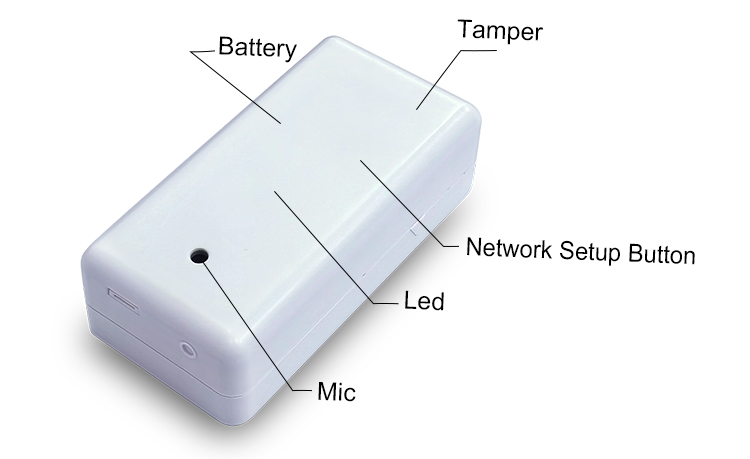

Side： |
Front： |

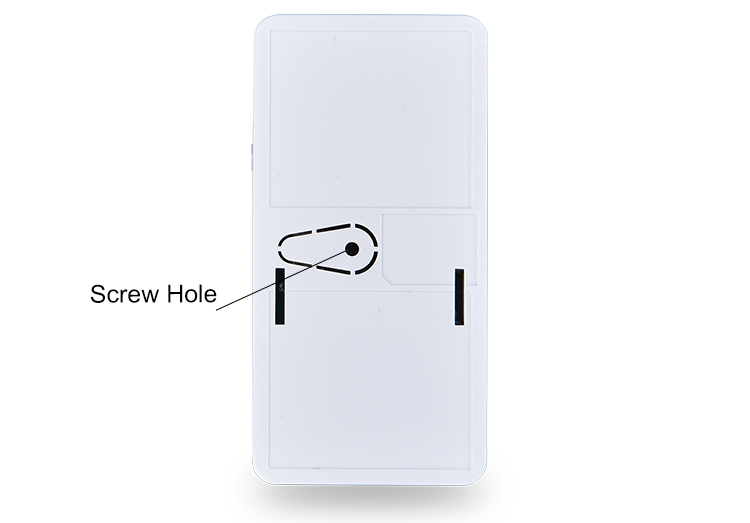

Back： |
正面：

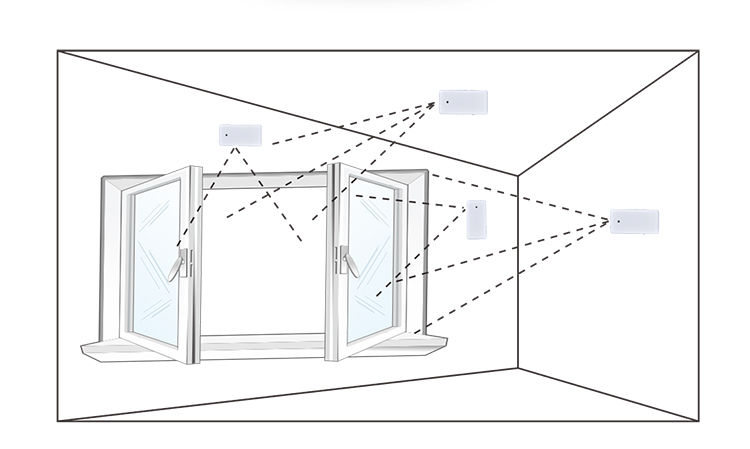

Illustration： |
Additional Resources：
Download
