Model:VU-3
Model: YL-005
● Dual protection via pressure and light-sensitive detection
● Automatic calibration; protected object remains under 24/7 surveillance

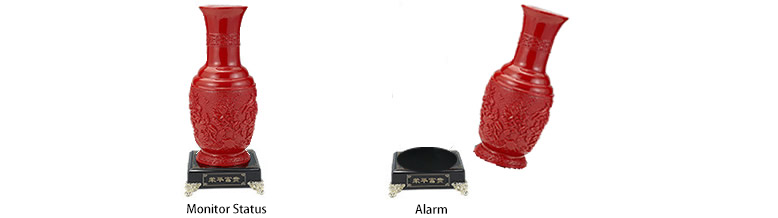

● Original weight signature is recorded; any increase or decrease in mass triggers an alarm
● Slight movement or sudden pushing may simultaneously activate light-sensitive detection, providing redundant protection
● Continuous mass monitoring of the protected artifact
● No physical constraints or fixtures applied to the protected object
● Sensor sensitivity is independent of object weight; any sudden push or slight movement will trigger an alarm
● Equipped with 6 output sockets connecting to a 6-conductor flat ribbon cable
Product OverviewDesigned for venues where the public has unrestricted access yet valuable items are on display. Provides 24/7 continuous mass monitoring, particularly suited for small statues, antique vases, ancient vessels, gemstones, and similar artifacts.
Features:
· Dual protection via pressure and light-sensitive detection
· Automatic calibration
· Original weight signature recorded; any increase or decrease triggers an alarm
· Slight movement or sudden pushing may simultaneously activate light-sensitive detection, providing redundant protection
Application:
Display cases in museums, art galleries, archives, jewelry stores, and other high-value exhibition spaces
SpecificationsYL-005 | |
Sensitivity | 40g |
Alarm Output | Open-circuit alarm(normal load 10k optional) |
Monitored Object Weight | 0.05 - 5kg |
Operating Voltage | 10V - 18V DC |
Operating Current | ≤10mA |
Tamper-Proof Function | Yes |
Operating Temperature | +10℃ ~ +55℃ |
Dimensions | Ø80 x 18mm (excluding cable) |
Weight | 410g |
AdditionalInfoProduct Information:
Applications：
Additional Resources：
Download
Model: MCDP-08 Museum and Jewelry shop showcase protection
